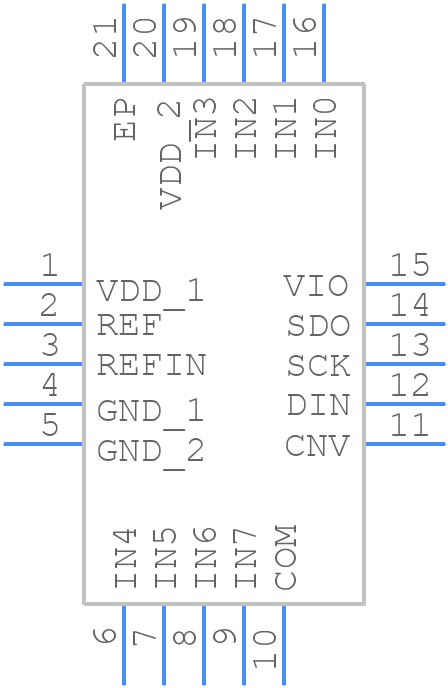

AD7689BCPZRL7 - Analog Devices

AD7689BCPZRL7 Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the AD7689BCPZRL7 to minimize noise and ensure optimal performance?
  A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-pass filter on the AVDD and DVDD pins to reduce noise.
• How do I ensure the AD7689BCPZRL7 is properly calibrated for accurate conversions?
  The AD7689BCPZRL7 has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has an internal voltage reference that can be used for calibration. It is recommended to perform a self-calibration cycle after power-up to ensure accurate conversions.
• What is the maximum sampling rate that can be achieved with the AD7689BCPZRL7?
  The AD7689BCPZRL7 can achieve a maximum sampling rate of 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal.
• How do I handle the output data from the AD7689BCPZRL7, and what is the format of the output data?
  The AD7689BCPZRL7 outputs 16-bit data in a twos-complement format. The output data can be read through the SPI interface, and the format of the output data is MSB-first, with the most significant bit (MSB) transmitted first.
• What is the power consumption of the AD7689BCPZRL7, and how can I reduce power consumption?
  The AD7689BCPZRL7 has a typical power consumption of 15 mW at 250 kSPS. To reduce power consumption, the device can be put into a low-power mode by setting the PD bit in the control register. Additionally, the power consumption can be reduced by reducing the sampling rate or by using a lower clock frequency.
