- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7701ARZ-REEL
- Part Number AD7701ARZ-REEL
- Manufacturer Analog Devices
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 20-LEAD SOIC
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7701ARZ-REEL Details
-
Manufacturer Part Number:
AD7701ARZ-REEL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOIC-20
-
Pin Count:
20
-
Manufacturer Package Code:
RW-20
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD7701ARZ-REEL Frequently Asked Questions (FAQs)
-
The AD7701ARZ-REEL is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to keep the analog and digital grounds separate, use a solid ground plane, and place the device close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the device's power pins.
-
The AD7701ARZ-REEL requires a clock signal to operate. The clock frequency should be between 1 MHz and 4 MHz, and it is recommended to use a clock signal with low jitter and noise. The clock signal should be connected to the CLKIN pin, and the device can also be configured to use an internal clock oscillator.
-
The recommended power-up sequence for the AD7701ARZ-REEL is to first apply the analog power supply (VCC) and then the digital power supply (DVCC). The device should be powered up in a sequence that ensures the analog power supply is stable before the digital power supply is applied.
-
The AD7701ARZ-REEL requires calibration to ensure accurate conversions. The device has an on-chip calibration register that can be used to calibrate the gain and offset of the ADC. The calibration process involves writing the calibration coefficients to the register, and the device will then use these coefficients to correct the conversion results.
-
The maximum sampling rate of the AD7701ARZ-REEL is 15 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the clock frequency, the conversion mode, and the interface mode.
Trust Checks
Community Provided
System Verified
Community Approved
AD7701ARZ-REEL Overview

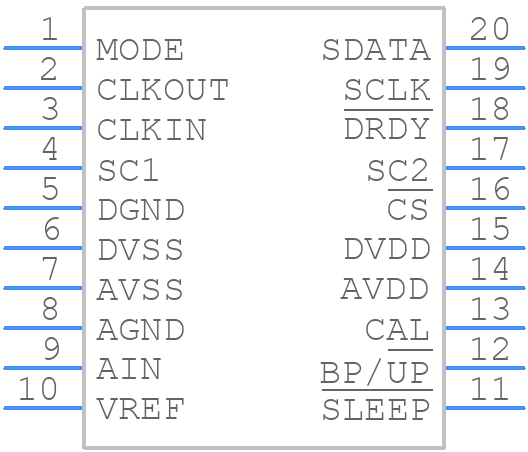

Use the download button to access the AD7701ARZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD770,
or try a keyword search, such as Analog to Digital Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
