AD7706BNZ - Analog Devices

Description: AD7706BNZ, 16 bit ADC Differential, SPI, 16-Pin PDIP

Download AD7706BNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

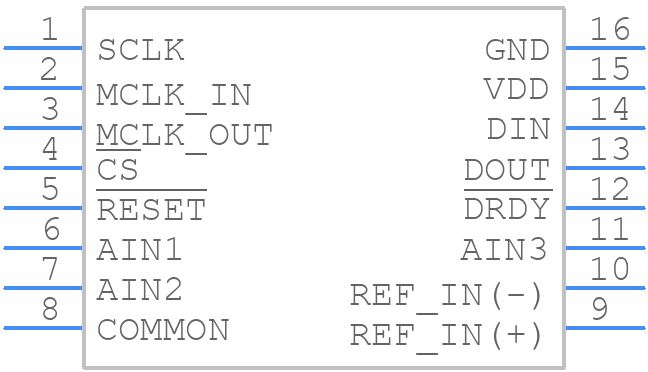

AD7706BNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7706BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16
click to zoom
3D Models
AD7706BNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16
click to zoom

AD7706BNZ Details

  • Manufacturer Part Number:

    AD7706BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, MS-001AB, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.07 mm

  • Linearity Error-Max (EL):

    0.003%

  • Number of Analog In Channels:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0192 MHz

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    0.32 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7706BNZ Frequently Asked Questions (FAQs)

  • The AD7706BNZ is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to keep the analog and digital grounds separate, use a solid ground plane, and place the device close to the analog signal sources. Additionally, keep the digital lines away from the analog lines to minimize noise coupling.
  • The AD7706BNZ requires a clock signal to operate. A crystal oscillator or a clock generator can be used to provide the clock signal. The clock frequency should be between 1 MHz and 4 MHz, and the clock signal should be clean and stable to ensure accurate conversions.
  • The recommended power-up sequence for the AD7706BNZ is to power up the analog supply (VCC) first, followed by the digital supply (DVCC). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up conditions.
  • The AD7706BNZ has an internal calibration mechanism that can be used to calibrate the device. The calibration process involves writing specific values to the calibration registers to trim the internal offset and gain errors. The calibration process should be performed after power-up and before taking any measurements.
  • The maximum sampling rate of the AD7706BNZ is 100 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the clock frequency, the conversion mode, and the filter settings.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
