AD7714ARSZ-5REEL - Analog Devices

Description: 5-Channel Single ADC Delta-Sigma 1ksps 24-bit Serial 28-Pin SSOP T/R

Download AD7714ARSZ-5REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

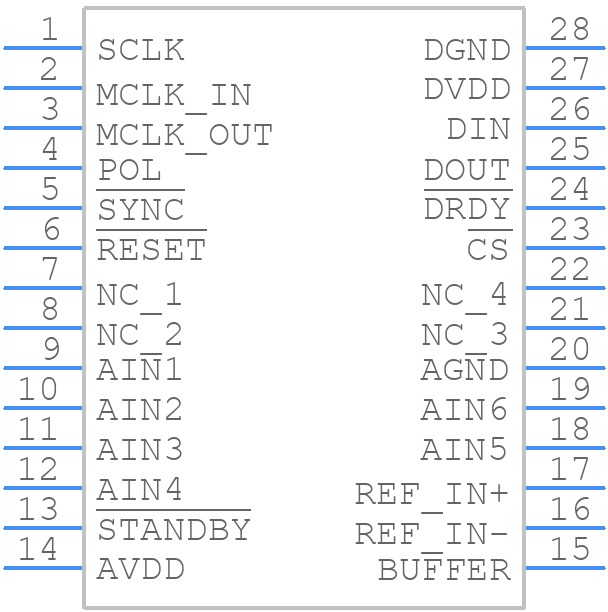

AD7714ARSZ-5REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7714ARSZ-5REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOP
click to zoom
3D Models
AD7714ARSZ-5REEL - Analog Devices - 3D model - Small Outline Packages - SOP
click to zoom

AD7714ARSZ-5REEL Details

  • Manufacturer Part Number:

    AD7714ARSZ-5REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    5

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD7714ARSZ-5REEL Frequently Asked Questions (FAQs)

  • The AD7714 requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • The AD7714 has a built-in calibration capability. The device can be calibrated using the CAL pin, which allows the user to adjust the offset and gain of the device. The calibration process is described in the datasheet and typically involves applying a known input voltage and adjusting the CAL pin to achieve the desired output code.
  • The maximum input voltage range for the AD7714 is ±10V, but it can be limited by the voltage reference used. The device can also be configured to accept smaller input ranges, such as ±5V or ±2.5V, depending on the application requirements.
  • Yes, the AD7714 can be used with an external voltage reference. The device has a dedicated VREF pin that can be connected to an external voltage reference, allowing the user to set the reference voltage to a specific value. This can be useful in applications where a specific voltage reference is required.
  • The power consumption of the AD7714 depends on the operating mode and the clock frequency. In normal mode, the device typically consumes around 15mA of current, while in standby mode, the current consumption is reduced to around 10μA. The power consumption can be further reduced by using the device's power-down mode.
