AD7714ARZ-5REEL - Analog Devices

Description: Quad Channel Single ADC Delta-Sigma 1ksps 24-bit Serial 24-Pin SOIC W T/R

Download AD7714ARZ-5REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

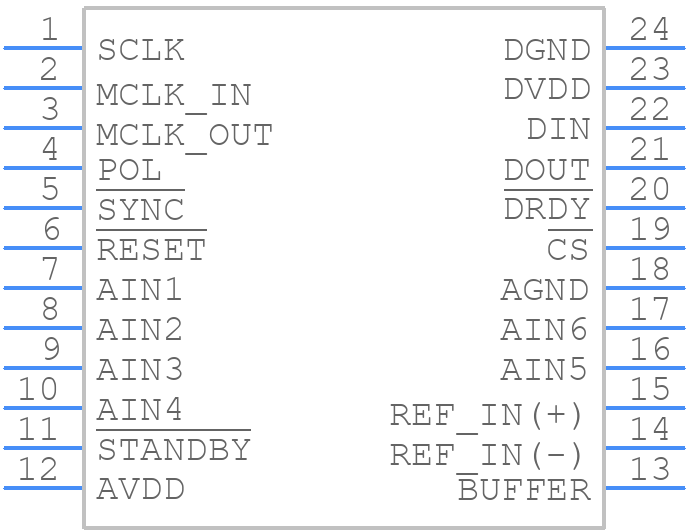

AD7714ARZ-5REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7714ARZ-5REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-24-1
click to zoom
3D Models
AD7714ARZ-5REEL - Analog Devices - 3D model - Small Outline Packages - R-24-1
click to zoom

AD7714ARZ-5REEL Details

  • Manufacturer Part Number:

    AD7714ARZ-5REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.29 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    5

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.26 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7714ARZ-5REEL Frequently Asked Questions (FAQs)

  • The AD7714ARZ-5REEL is a sensitive analog device, and proper layout and placement are crucial. It's recommended to keep the device away from high-frequency sources, use a solid ground plane, and keep analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device, and the analog and digital power supplies should be separated.
  • The AD7714ARZ-5REEL requires calibration to ensure accurate measurements. The recommended calibration procedure involves applying a known input voltage, measuring the output code, and adjusting the offset and gain registers accordingly. The device also has a built-in calibration mode that can be used to simplify the calibration process.
  • The AD7714ARZ-5REEL's ADC has limitations such as nonlinearity, noise, and limited bandwidth. To optimize its performance, it's recommended to use a high-quality analog input signal, minimize noise and interference, and use the device's built-in features such as gain and offset calibration. Additionally, the ADC's performance can be improved by using external filters and amplifiers.
  • The AD7714ARZ-5REEL can be interfaced with a microcontroller or DSP using a serial interface such as SPI or I2C. The device's digital output can be connected to the microcontroller's or DSP's digital input, and the device's control registers can be accessed using the serial interface. The microcontroller or DSP can then read the converted data and perform further processing and analysis.
  • The AD7714ARZ-5REEL requires a dual power supply, with a recommended voltage range of 2.7V to 5.5V for the analog supply and 2.7V to 5.5V for the digital supply. It's recommended to use a low-noise, low-dropout regulator to power the device, and to decouple the power supplies with capacitors to minimize noise and ensure reliable operation.
