AD7714YRUZ - Analog Devices

Description: AD7714YRUZ, 24 bit ADC Differential, SPI, 24-Pin TSSOP

Download AD7714YRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

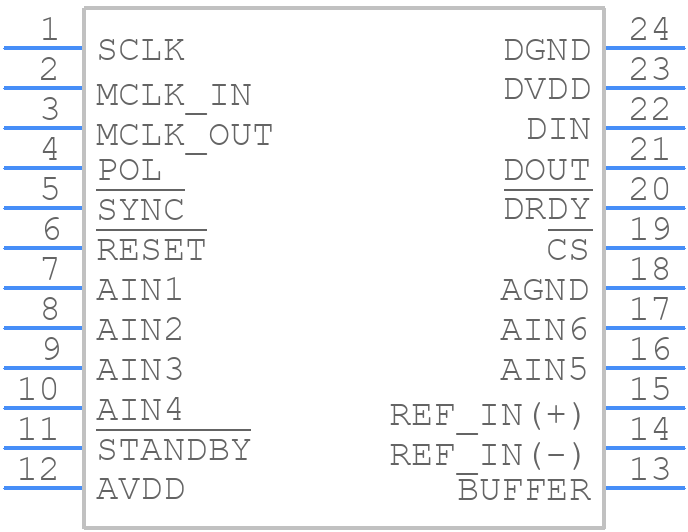

Symbol
AD7714YRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7714YRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24-Lead Thin Shrink Small Outline Package [TSSOP] (RU-24)-
click to zoom
3D Models
AD7714YRUZ - Analog Devices - 3D model - Small Outline Packages - 24-Lead Thin Shrink Small Outline Package [TSSOP] (RU-24)-
click to zoom

AD7714YRUZ Details

  • Manufacturer Part Number:

    AD7714YRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.25 V

  • Analog Input Voltage-Min:

    -1.25 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    5

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD7714YRUZ Frequently Asked Questions (FAQs)

  • The AD7714YRUZ is a sensitive analog device, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the device close to the analog signal sources to minimize noise pickup.
  • To optimize the AD7714YRUZ for low noise performance, ensure that the analog input signals are properly filtered and buffered, use a low-noise voltage reference, and minimize digital noise coupling into the analog circuitry. Additionally, consider using a shielded enclosure and keep the device away from high-frequency sources.
  • The maximum allowable input voltage for the AD7714YRUZ is ±VREF, where VREF is the voltage reference voltage. Exceeding this voltage can damage the device. It is recommended to use input protection circuitry, such as clamping diodes or voltage-limiting resistors, to prevent overvoltage conditions.
  • The AD7714YRUZ requires a one-time calibration procedure to optimize its performance. This involves applying a known input voltage and adjusting the internal offset and gain registers to achieve the desired accuracy. Refer to the datasheet and application notes for detailed calibration procedures.
  • The recommended power-up sequence for the AD7714YRUZ is to apply the analog power supply (VCC) first, followed by the digital power supply (DVCC). This ensures that the analog circuitry is powered up before the digital interface, preventing any potential latch-up conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7714YRUZ Overview

Use the download button to access the AD7714YRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD771, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
