AD7715ANZ-3 - Analog Devices

Description: AD7715ANZ-3, 16 bit ADC Differential, SPI, 16-Pin PDIP

Download AD7715ANZ-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

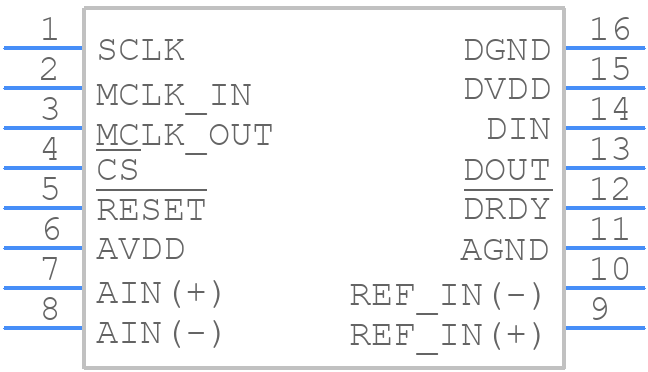

Symbol
AD7715ANZ-3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7715ANZ-3 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16(inch)
click to zoom
3D Models
AD7715ANZ-3 - Analog Devices - 3D model - Dual-In-Line Packages - N-16(inch)
click to zoom

AD7715ANZ-3 Details

  • Manufacturer Part Number:

    AD7715ANZ-3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.25 V

  • Analog Input Voltage-Min:

    -1.25 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.07 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7715ANZ-3 Frequently Asked Questions (FAQs)

  • The AD7715ANZ-3 is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog input traces short and away from digital signals. Additionally, the device should be placed close to the analog signal sources to minimize noise pickup.
  • The AD7715ANZ-3 has an internal calibration mechanism that can be initiated through the CAL pin. The device can be calibrated in-system or during manufacturing. The calibration process involves shorting the CAL pin to digital ground, applying a known voltage to the analog input, and then releasing the CAL pin. The device will then adjust its internal gain and offset to match the applied voltage.
  • The maximum sampling rate of the AD7715ANZ-3 is 100 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface used.
  • The AD7715ANZ-3 is specified to operate from a 2.7V to 5.5V power supply. However, the device's performance may be affected at 5V, and the power consumption will be higher. It is recommended to operate the device at 3.3V or lower for optimal performance and power efficiency.
  • The AD7715ANZ-3's digital output data is in 2's complement format, with the most significant bit (MSB) indicating the sign of the conversion result. The output data can be read through the SPI-compatible interface, and the user should take care to handle the data correctly, including sign extension and formatting for the target system.
