AD7715ANZ-5 - Analog Devices

Description: AD7715ANZ-5, 16 bit ADC Differential, SPI, 16-Pin PDIP

Download AD7715ANZ-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

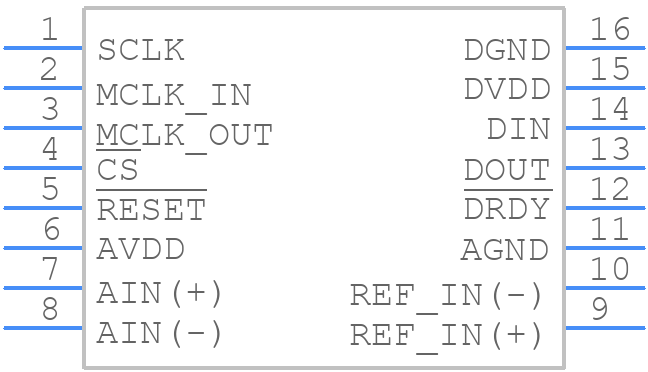

AD7715ANZ-5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7715ANZ-5 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16(inch)
click to zoom
3D Models
AD7715ANZ-5 - Analog Devices - 3D model - Dual-In-Line Packages - N-16(inch)
click to zoom

AD7715ANZ-5 Details

  • Manufacturer Part Number:

    AD7715ANZ-5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.07 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7715ANZ-5 Frequently Asked Questions (FAQs)

  • A good layout and grounding technique is crucial for the AD7715ANZ-5. It is recommended to use a multi-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. The AD7715ANZ-5 should be placed close to the analog signal sources, and the analog and digital signals should be routed separately to minimize noise coupling.
  • To optimize the performance of the AD7715ANZ-5 in noisy environments, it is recommended to use a low-pass filter at the input, and to use a shielded cable to connect the sensor to the AD7715ANZ-5. Additionally, the AD7715ANZ-5 should be placed in a shielded enclosure, and the power supply should be well-regulated and filtered.
  • The maximum sampling rate of the AD7715ANZ-5 is 100 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the bandwidth of the input signal and the settling time of the ADC.
  • The AD7715ANZ-5 has a built-in calibration feature that allows the user to calibrate the device. The calibration process involves applying a known input voltage to the device and adjusting the internal calibration registers to achieve the desired accuracy.
  • The power consumption of the AD7715ANZ-5 depends on the operating mode and the sampling rate. In normal mode, the power consumption is typically around 15 mW, while in standby mode, it is around 1 mW.
