AD7716BSZ - Analog Devices

Description: 22-Bit Data Acquisition System

Download AD7716BSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

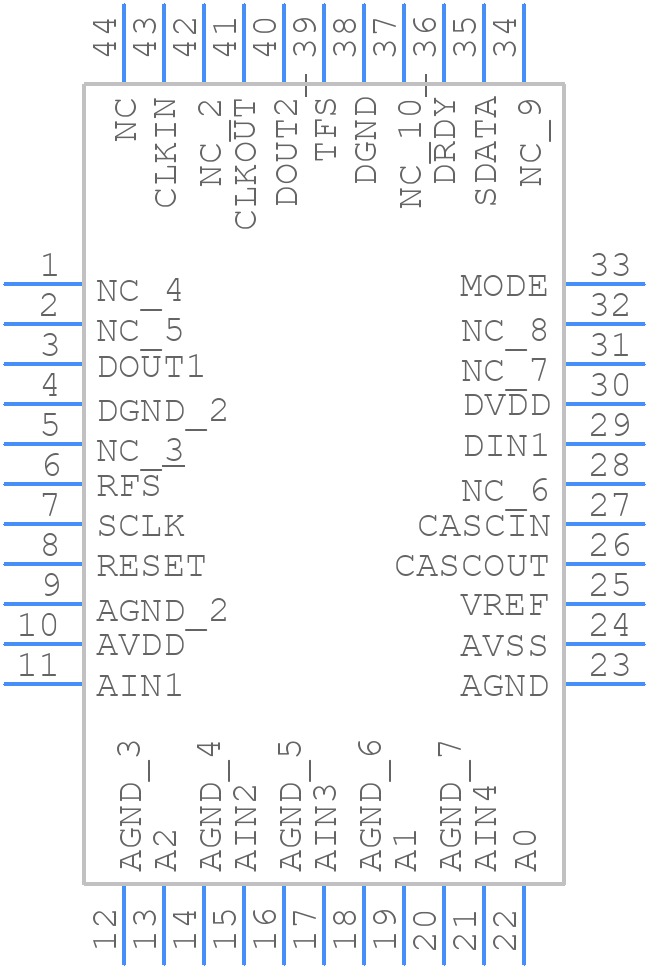

AD7716BSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

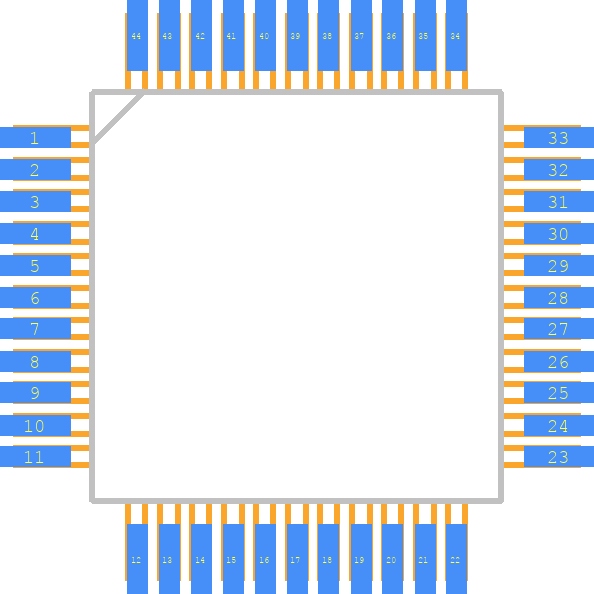

AD7716BSZ - Analog Devices PCB footprint - Other - Other - QFP80P1400X1400X245-44N
click to zoom

AD7716BSZ Details

  • Manufacturer Part Number:

    AD7716BSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, QFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    S-44-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.006%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    4

  • Number of Bits:

    22

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP44,.5SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

AD7716BSZ Frequently Asked Questions (FAQs)

  • The AD7716BSZ requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7716BSZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, choosing the right clock frequency, and optimizing the analog front-end circuitry. Additionally, it is crucial to consider the noise performance, linearity, and accuracy requirements of your application.
  • When selecting external components for the AD7716BSZ, it is essential to consider the component's tolerance, temperature coefficient, and noise performance. For example, the external resistors and capacitors should be chosen to minimize thermal noise and ensure accurate conversions. Additionally, the clock source should be chosen to minimize jitter and ensure accurate timing.
  • To troubleshoot common issues with the AD7716BSZ, it is essential to follow a systematic approach. This includes verifying the power supply, clock, and analog input signals, as well as checking the device's configuration and calibration. Additionally, it is crucial to analyze the noise performance, linearity, and accuracy of the device to identify the root cause of the issue.
  • The AD7716BSZ is a high-performance, 16-bit, analog-to-digital converter with a sigma-delta architecture. Compared to other similar devices from Analog Devices Inc, the AD7716BSZ offers higher resolution, better noise performance, and a wider input range. Additionally, the AD7716BSZ has a more flexible clocking scheme and a wider range of gain and offset settings.
