AD7718BRZ-REEL - Analog Devices

Description: Analog to Digital Converters - ADC 4/5 Chnl Diff or 8/10 chnl 24-Bit ADC

Download AD7718BRZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

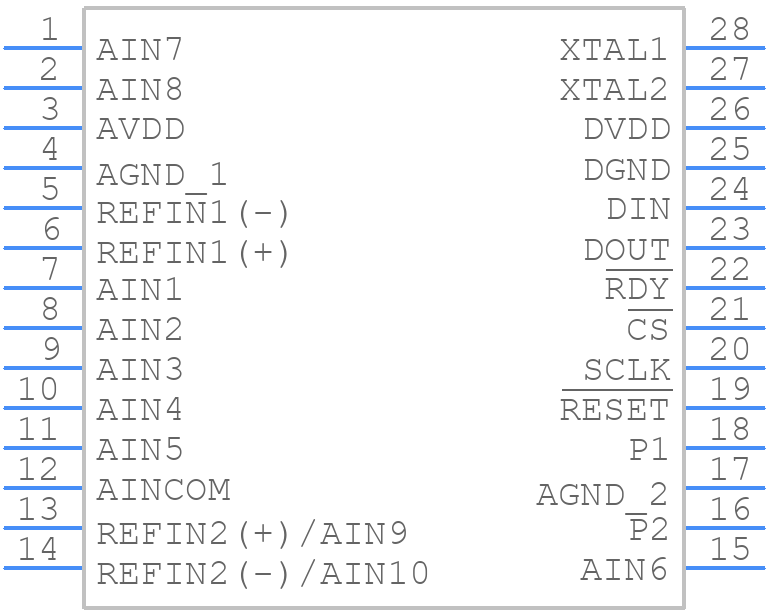

AD7718BRZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7718BRZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-28
click to zoom
3D Models
AD7718BRZ-REEL - Analog Devices - 3D model - Small Outline Packages - R-28
click to zoom

AD7718BRZ-REEL Details

  • Manufacturer Part Number:

    AD7718BRZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RW-28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.56 V

  • Analog Input Voltage-Min:

    -2.56 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    10

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

AD7718BRZ-REEL Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7718BRZ-REEL can be found in the AD7718 Evaluation Board documentation, which provides a detailed layout guide and PCB design files. Additionally, Analog Devices provides a layout guide in the AD7718 datasheet, which highlights the importance of keeping the analog and digital grounds separate, and providing a solid ground plane.
  • The AD7718BRZ-REEL does not require calibration in the classical sense. However, it is recommended to perform a system calibration to ensure accurate measurements. This can be done by applying a known input voltage and adjusting the gain and offset registers to achieve the desired output code. The AD7718 datasheet provides a detailed calibration procedure.
  • The maximum input voltage that can be applied to the AD7718BRZ-REEL is ±VREF, where VREF is the reference voltage. The recommended maximum input voltage is ±5V, but this can be increased to ±10V with the use of external attenuators or amplifiers. However, it is essential to ensure that the input voltage does not exceed the absolute maximum ratings specified in the datasheet.
  • Yes, the AD7718BRZ-REEL can be used in a multiplexed configuration. The device has a built-in multiplexer that allows multiple channels to be connected to a single ADC. The AD7718 datasheet provides a detailed description of the multiplexing operation and the required control signals.
  • The AD7718BRZ-REEL has a power-on reset (POR) circuit that resets the device to its default state when the power supply is turned on. The POR circuit ensures that the device is in a known state after power-up, and it is essential for reliable operation. The AD7718 datasheet provides a detailed description of the POR behavior.
