AD7719BRZ - Analog Devices

Description: AD7719BRZ, 24 bit ADC Dual, Differential, SPI, 28-Pin SOIC W

Download AD7719BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

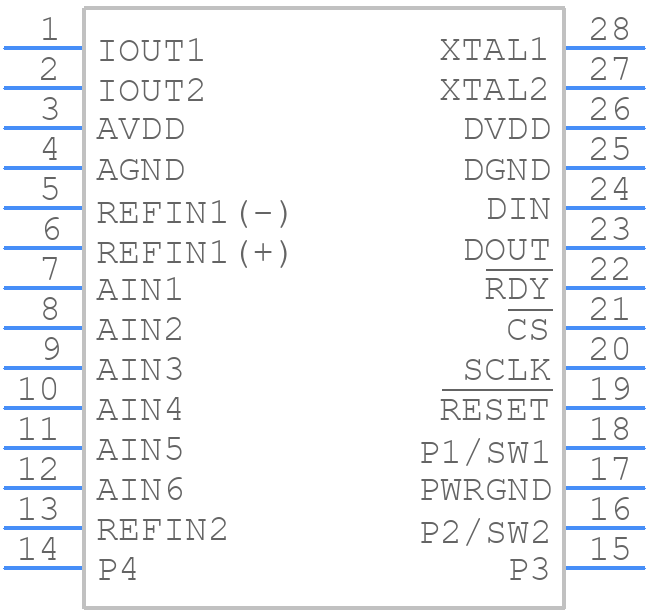

AD7719BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7719BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Standard Small Outline Package [SOIC] Wide Body (R-28)
click to zoom
3D Models
AD7719BRZ - Analog Devices - 3D model - Small Outline Packages - 28-Lead Standard Small Outline Package [SOIC] Wide Body (R-28)
click to zoom

AD7719BRZ Details

  • Manufacturer Part Number:

    AD7719BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-013AE, SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RW-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.56 V

  • Analog Input Voltage-Min:

    -2.56 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    6

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

AD7719BRZ Frequently Asked Questions (FAQs)

  • The AD7719BRZ requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7719BRZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, choosing the right clock frequency, and optimizing the analog front-end circuitry. Additionally, it is crucial to ensure that the device is properly calibrated and that the analog input signals are properly filtered and conditioned.
  • Common pitfalls to avoid when using the AD7719BRZ include incorrect pin connections, inadequate power supply decoupling, and insufficient analog input signal conditioning. Additionally, failing to properly calibrate the device, using incorrect gain and offset settings, and neglecting to filter out noise and interference can also lead to poor performance.
  • To troubleshoot issues with the AD7719BRZ, start by verifying that the device is properly powered and that the analog input signals are within the specified range. Check the device's clock frequency and ensure that it is properly synchronized with the system clock. Also, verify that the gain and offset settings are correct and that the device is properly calibrated. If issues persist, consult the datasheet and application notes for guidance.
  • The AD7719BRZ is a high-performance analog-to-digital converter that can generate heat during operation. To ensure reliable operation, it is essential to provide adequate heat dissipation. This can be achieved by using a heat sink, ensuring good airflow, and avoiding high ambient temperatures.
