AD7723BSZ - Analog Devices

Description: Analog Devices AD7723BSZ, 16-Bit Serial ADC Differential Input, 44-Pin MQFP

Download AD7723BSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

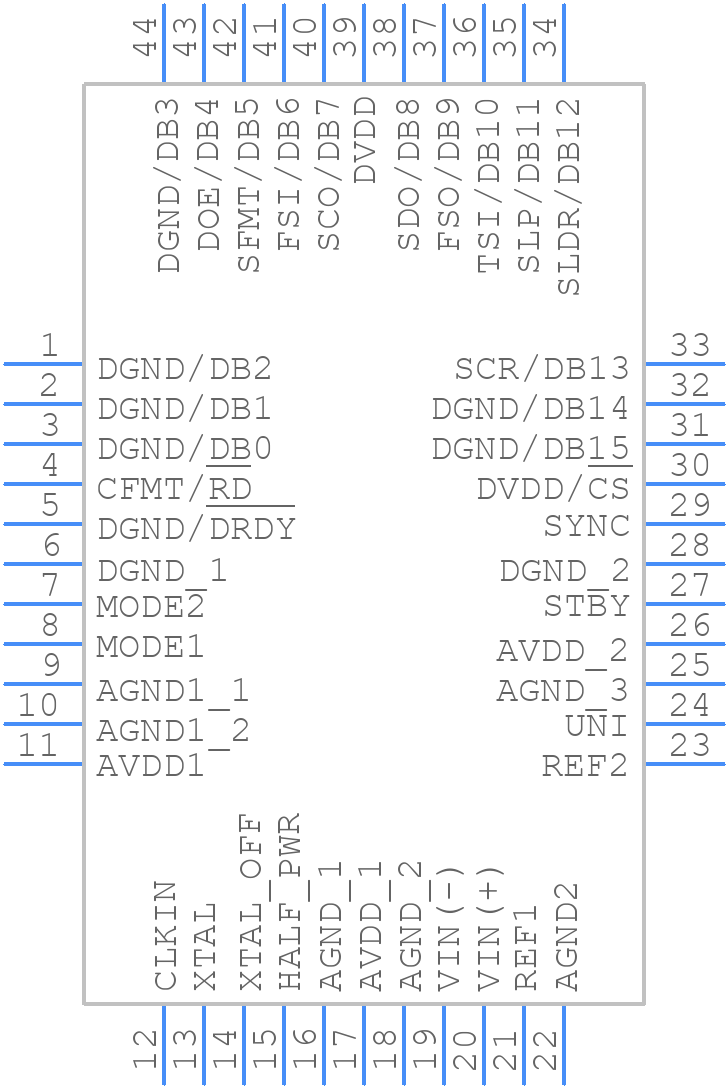

AD7723BSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

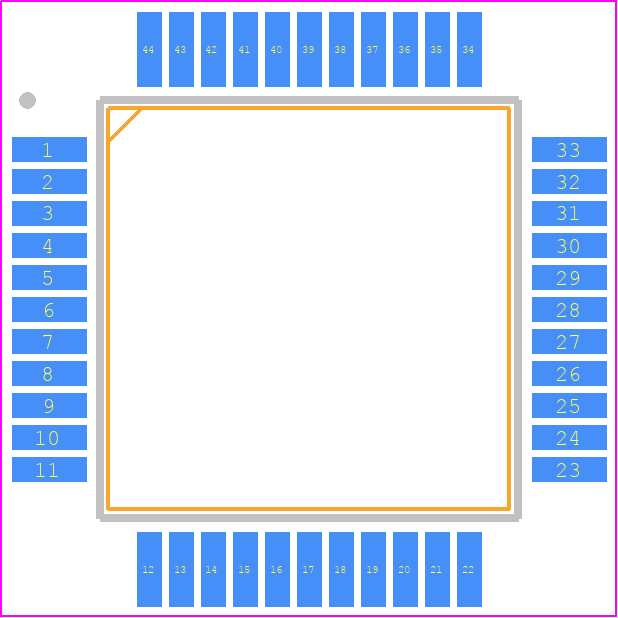

AD7723BSZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - mqfp-ren1
click to zoom
3D Models
AD7723BSZ - Analog Devices - 3D model - Quad Flat Packages - mqfp-ren1
click to zoom

AD7723BSZ Details

  • Manufacturer Part Number:

    AD7723BSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LEAD FREE, MO-112-AA, MQFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    S-44-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP44,.57SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

AD7723BSZ Frequently Asked Questions (FAQs)

  • The AD7723BSZ requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To optimize the AD7723BSZ for low noise performance, ensure that the device is operated within its recommended operating conditions, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, use shielding and guarding techniques to reduce electromagnetic interference (EMI).
  • The AD7723BSZ has a maximum sampling rate of 250 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and other factors.
  • Yes, the AD7723BSZ can be used with a single-ended analog input. However, it is recommended to use a differential input configuration to take advantage of the device's common-mode rejection capabilities and to reduce noise and interference.
  • The AD7723BSZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the device's internal calibration registers to achieve optimal performance. Refer to the datasheet for detailed calibration procedures.
