AD7730BRZ-REEL - Analog Devices

Description: 2-Channel Single ADC Delta-Sigma 1.2ksps 24-bit Serial 24-Pin SOIC W T/R

Download AD7730BRZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

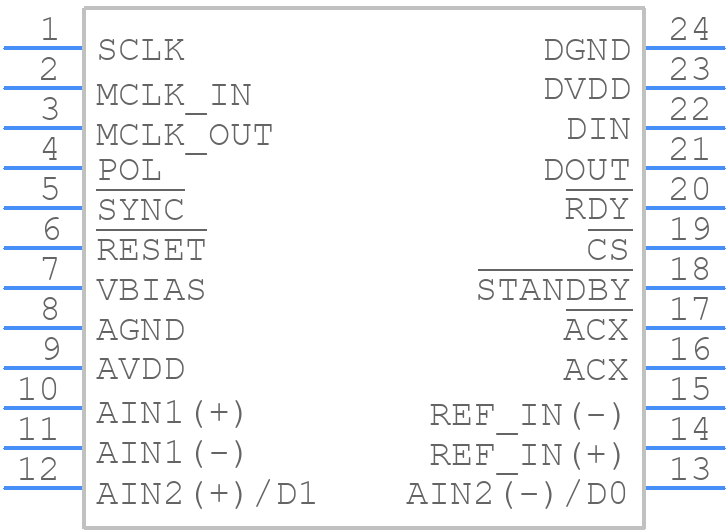

AD7730BRZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7730BRZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD7730BRZ-REEL - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD7730BRZ-REEL Details

  • Manufacturer Part Number:

    AD7730BRZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.8 V

  • Analog Input Voltage-Min:

    -0.8 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0018%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    19

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    22.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7730BRZ-REEL Frequently Asked Questions (FAQs)

  • The AD7730BRZ-REEL requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • The AD7730BRZ-REEL requires calibration to achieve optimal accuracy and linearity. The calibration process involves adjusting the internal gain and offset registers to compensate for device variations and external component tolerances. The calibration procedure is described in the datasheet and application notes.
  • The recommended power-up sequence for the AD7730BRZ-REEL is to apply the analog power supply (AVDD) before the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing damage or malfunction.
  • The AD7730BRZ-REEL's digital output data requires careful handling to ensure accurate and reliable conversion results. It is recommended to use a first-in, first-out (FIFO) buffer to handle the output data, and to use a reliable communication protocol such as SPI or I2C to transfer the data to a microcontroller or other digital system.
  • The AD7730BRZ-REEL requires careful thermal management to prevent overheating and ensure reliable operation. It is recommended to provide adequate heat sinking, use a thermally conductive package, and ensure good airflow around the device to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7730BRZ-REEL Overview

Use the download button to access the AD7730BRZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD773, or try a keyword search, such as Analog to Digital Converters
