AD7730LBRUZ - Analog Devices

Description: AD7730LBRUZ, 24-Bit Analogue to Digital Converter, Differential, Serial, 24-Pin TSSOP

Download AD7730LBRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

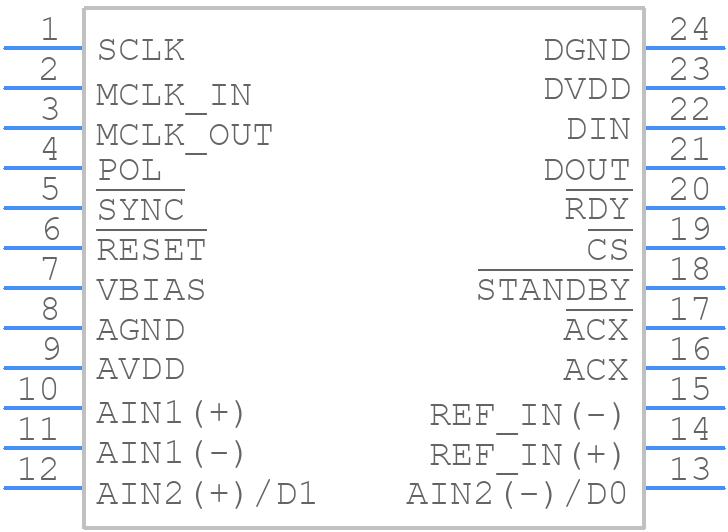

Symbol
AD7730LBRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7730LBRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7730LBRUZ
click to zoom
3D Models
AD7730LBRUZ - Analog Devices - 3D model - Small Outline Packages - AD7730LBRUZ
click to zoom

AD7730LBRUZ Details

  • Manufacturer Part Number:

    AD7730LBRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.08 V

  • Analog Input Voltage-Min:

    -0.08 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0022%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    22.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD7730LBRUZ Frequently Asked Questions (FAQs)

  • The AD7730LBRUZ requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7730LBRUZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, choosing the right clock frequency, and optimizing the analog front-end circuitry. Additionally, it is recommended to consult the device's datasheet and application notes for specific guidance.
  • Common pitfalls to avoid when designing with the AD7730LBRUZ include inadequate decoupling, poor layout and placement, and insufficient analog front-end filtering. Additionally, incorrect gain and offset settings, and inadequate clock frequency selection can also lead to suboptimal performance.
  • To troubleshoot issues with the AD7730LBRUZ, it is recommended to follow a systematic approach. This includes verifying the power supply and clock signals, checking the analog input signals, and verifying the digital output data. Additionally, it is essential to consult the device's datasheet and application notes for specific guidance.
  • The AD7730LBRUZ has a maximum junction temperature of 150°C. It is essential to ensure that the device is operated within the recommended temperature range to ensure reliable operation. This includes providing adequate heat sinking and ensuring good airflow around the device.
