AD7731BNZ - Analog Devices

Description: AD7731BNZ, 24 bit ADC Differential,, Serial, 24-Pin PDIP

Download AD7731BNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

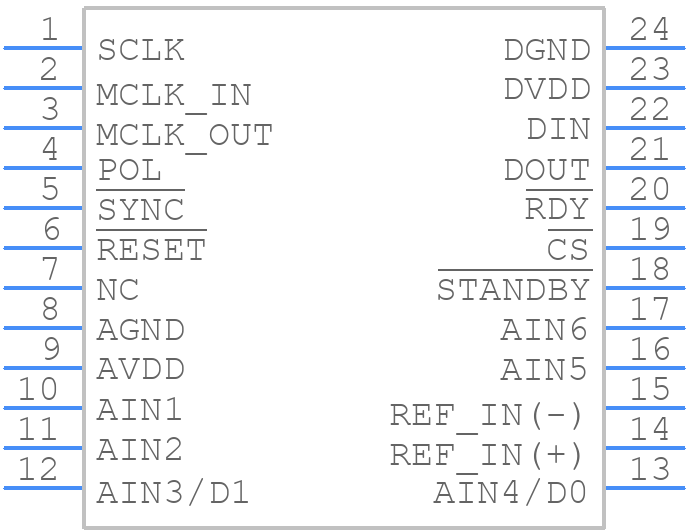

AD7731BNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7731BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD7731BNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD7731BNZ Details

  • Manufacturer Part Number:

    AD7731BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, MS-001, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.28 V

  • Analog Input Voltage-Min:

    -1.28 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.75 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Number of Analog In Channels:

    6

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    10.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7731BNZ Frequently Asked Questions (FAQs)

  • The AD7731BNZ requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7731BNZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, choosing the right clock frequency, and optimizing the analog front-end circuitry. Additionally, it is crucial to ensure that the device is properly calibrated and that the analog input signals are properly filtered and conditioned.
  • Common pitfalls to avoid when using the AD7731BNZ include incorrect pin connections, inadequate power supply decoupling, and insufficient analog input signal conditioning. Additionally, failing to properly calibrate the device, using incorrect gain and offset settings, and neglecting to filter out noise and interference can also lead to poor performance.
  • To troubleshoot issues with the AD7731BNZ, start by verifying that the device is properly powered and that the analog input signals are within the specified range. Check the device's output data for errors and ensure that the clock frequency is correct. If issues persist, consult the datasheet and application notes for guidance, and consider using a logic analyzer or oscilloscope to debug the issue.
  • Yes, the AD7731BNZ can be used in multi-channel applications. However, it is essential to ensure that each channel is properly isolated and that the device is configured correctly to handle multiple channels. This may require additional external circuitry, such as multiplexers or analog switches, to route the analog input signals to the device.
