AD7731BR-REEL7 - Analog Devices

Description: Analog to Digital Converters - ADC Low Noise 24-Bit High Throughput

Download AD7731BR-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

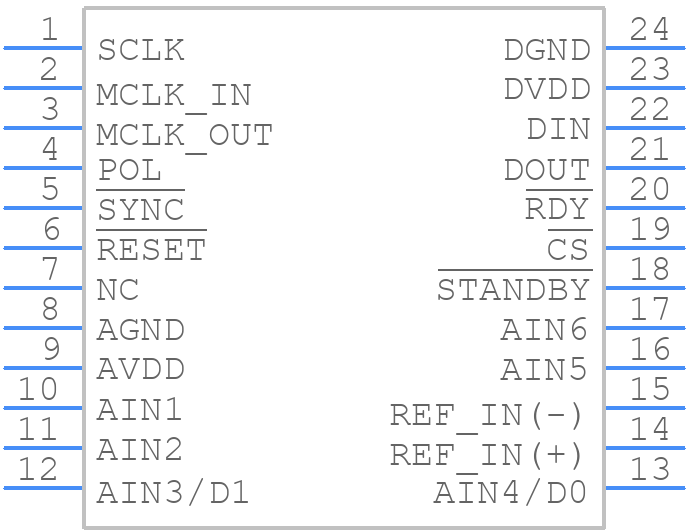

AD7731BR-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7731BR-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD7731BR-REEL7 - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD7731BR-REEL7 Details

  • Manufacturer Part Number:

    AD7731BR-REEL7

  • Source Url Status Check Date:

    2013-05-01 14:56:20.216

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    1.28 V

  • Analog Input Voltage-Min:

    -1.28 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e0

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    6

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    10.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

AD7731BR-REEL7 Frequently Asked Questions (FAQs)

  • The AD7731BR-REEL7 requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • The AD7731BR-REEL7 requires calibration to ensure accurate measurements. Calibration involves adjusting the offset and gain of the device using the CAL pin. The calibration process is described in the datasheet, and it is recommended to follow the procedure carefully to ensure accurate results.
  • The maximum sampling rate of the AD7731BR-REEL7 is 15.4 kHz. However, the actual sampling rate may be limited by the system clock frequency, the conversion time, and the settling time of the analog input signal.
  • Yes, the AD7731BR-REEL7 can be used with a single supply voltage. However, it is recommended to use a dual supply voltage (±5 V or ±15 V) for optimal performance. If a single supply voltage is used, the device's performance may be degraded, and the output voltage range may be limited.
  • The AD7731BR-REEL7 can be interfaced with a microcontroller using a serial interface (SPI or I2C). The device's digital output can be connected to the microcontroller's digital input pins, and the microcontroller can read the conversion results using the serial interface. The interface protocol is described in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7731BR-REEL7 Overview

Use the download button to access the AD7731BR-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD773, or try a keyword search, such as Analog to Digital Converters
