AD7732BRUZ - Analog Devices

Description: AD7732BRUZ, 24 bit ADC Differential, SPI, 28-Pin TSSOP

Download AD7732BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

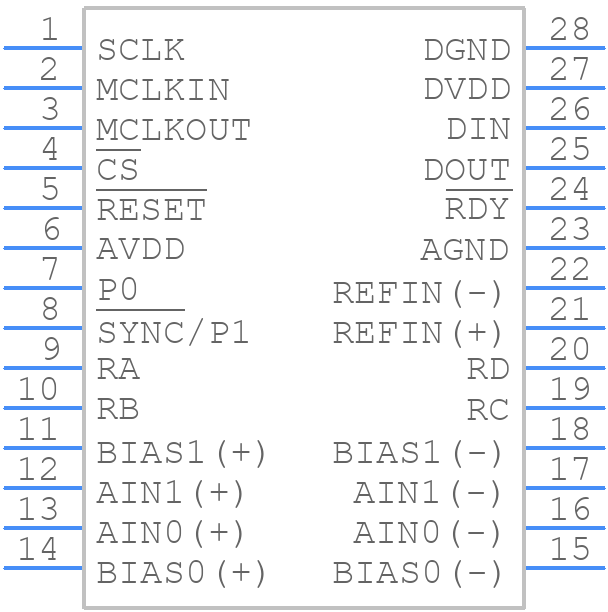

AD7732BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7732BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28 (TSSOP)-1
click to zoom
3D Models
AD7732BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-28 (TSSOP)-1
click to zoom

AD7732BRUZ Details

  • Manufacturer Part Number:

    AD7732BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    82.034 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.003%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.012 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7732BRUZ Frequently Asked Questions (FAQs)

  • The AD7732BRUZ requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7732BRUZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, choosing the right clock frequency, and optimizing the analog front-end circuitry. Additionally, it is recommended to consult the device's evaluation board documentation and application notes for guidance.
  • Common pitfalls to avoid when designing with the AD7732BRUZ include inadequate decoupling, poor layout and placement, and incorrect gain and offset settings. Additionally, failing to consider the device's noise performance, not using the correct clock frequency, and not following the recommended analog front-end circuitry can also lead to suboptimal performance.
  • To troubleshoot issues with the AD7732BRUZ, it is essential to follow a systematic approach. This includes verifying the power supply, checking the clock frequency, and ensuring that the analog input signals are within the specified range. Additionally, using the device's built-in diagnostic features, such as the fault detection pin, can help identify issues. Consult the device's datasheet and application notes for guidance.
  • The AD7732BRUZ has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to consider thermal management, including providing adequate heat sinking, using thermal interface materials, and minimizing power consumption. Consult the device's datasheet and thermal management application notes for guidance.
