AD7734BRUZ-REEL - Analog Devices

Description: IC ADC 24BIT 4CH SIG-DEL 28TSSOP

Download AD7734BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

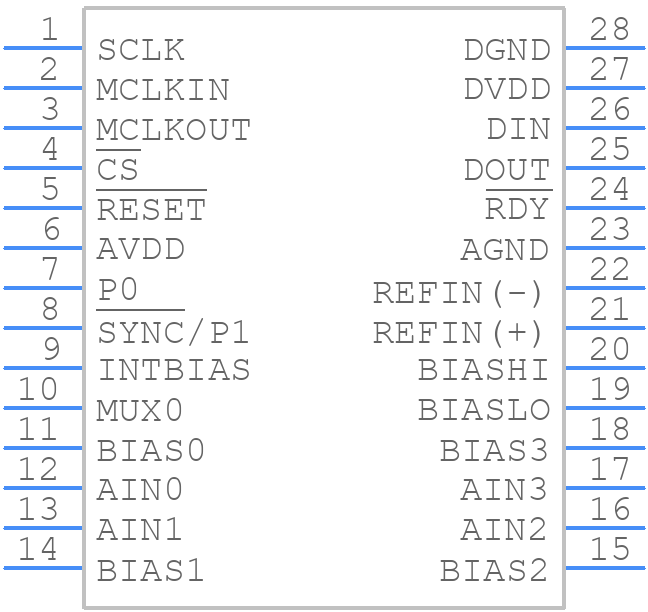

AD7734BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7734BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28
click to zoom
3D Models
AD7734BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-28
click to zoom

AD7734BRUZ-REEL Details

  • Manufacturer Part Number:

    AD7734BRUZ-REEL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-153AE, TSSOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0045%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0154 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    15.9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD7734BRUZ-REEL Frequently Asked Questions (FAQs)

  • The AD7734BRUZ-REEL is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
  • The AD7734BRUZ-REEL has an internal calibration mechanism, but it may require additional external calibration to achieve the highest accuracy. This can be done by applying a known input voltage and adjusting the ADC's offset and gain registers accordingly. It is also recommended to perform calibration at multiple temperatures to ensure accuracy over the entire operating range.
  • The AD7734BRUZ-REEL can achieve a maximum sampling rate of 100 kSPS. However, the power consumption increases with the sampling rate. At the maximum sampling rate, the power consumption is approximately 35 mW. To reduce power consumption, the sampling rate can be reduced, but this may affect the ADC's performance in certain applications.
  • The AD7734BRUZ-REEL has a serial interface that can be connected to a microcontroller or FPGA. The recommended communication protocol is SPI, but it can also be interfaced using I2C or parallel interfaces. The ADC's datasheet provides detailed information on the communication protocols and timing diagrams.
  • The AD7734BRUZ-REEL is sensitive to temperature changes, which can affect its performance and accuracy. The ADC's temperature range is -40°C to 125°C, and it is recommended to operate it within a temperature range of 0°C to 70°C for optimal performance. Thermal management is critical, and it is recommended to use a heat sink or thermal pad to dissipate heat.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7734BRUZ-REEL Overview

Use the download button to access the AD7734BRUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD773, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
