AD775JN - Analog Devices

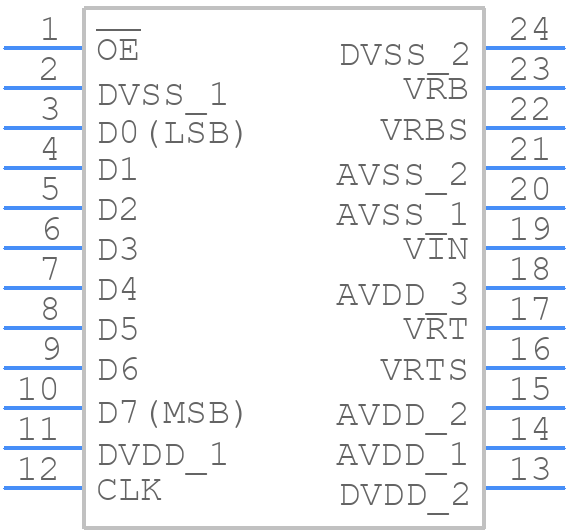

AD775JN Details

• Manufacturer Part Number:

  AD775JN

• Part Life Cycle Code:

  Obsolete

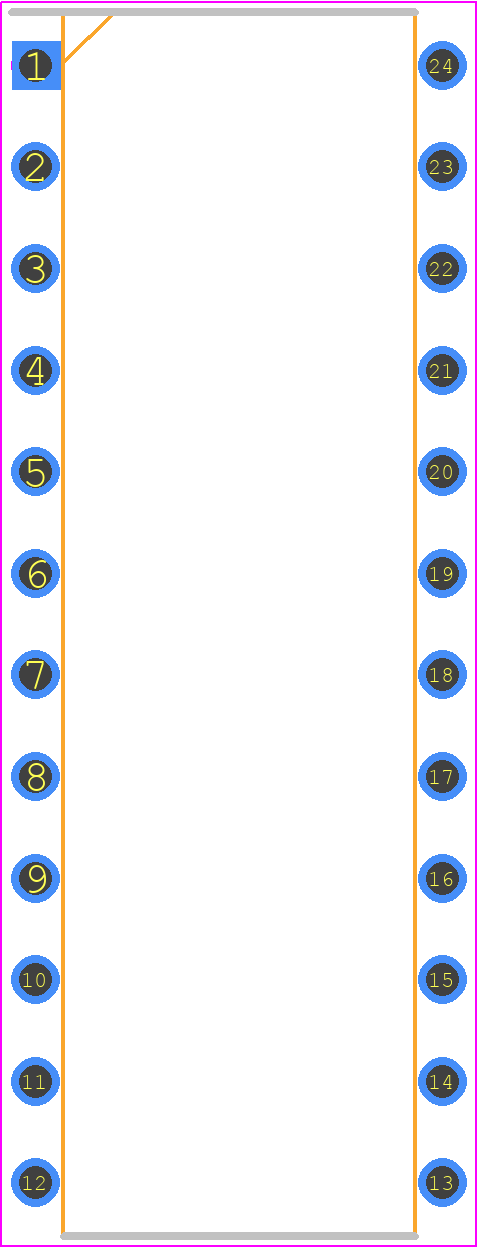

• Part Package Code:

  DIP

• Package Description:

  0.400 INCH, PLASTIC, DIP-24

• Pin Count:

  24

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Analog Input Voltage-Max:

  2 V

• Analog Input Voltage-Min:

  -2 V

• Conversion Time-Max:

  0.05 µs

• Converter Type:

  ADC, FLASH METHOD

• JESD-30 Code:

  R-PDIP-T24

• JESD-609 Code:

  e0

• Length:

  30.35 mm

• Linearity Error-Max (EL):

  0.5078%

• Number of Analog In Channels:

  1

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• Output Bit Code:

  BINARY

• Output Format:

  PARALLEL, 8 BITS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Sample Rate:

  20 MHz

• Seated Height-Max:

  4.1 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  10.16 mm
