AD7791BRMZ-REEL - Analog Devices

Description: 1-Channel Single ADC Delta-Sigma 120sps 24-bit Serial 10-Pin MSOP T/R

Download AD7791BRMZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

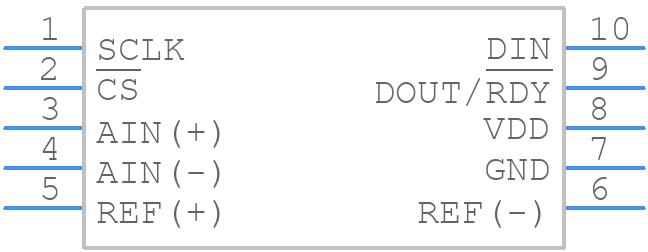

AD7791BRMZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7791BRMZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10 (MSOP)
click to zoom
3D Models
AD7791BRMZ-REEL - Analog Devices - 3D model - Small Outline Packages - RM-10 (MSOP)
click to zoom

AD7791BRMZ-REEL Details

  • Manufacturer Part Number:

    AD7791BRMZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.145 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7791BRMZ-REEL Frequently Asked Questions (FAQs)

  • The AD7791BRMZ-REEL is a sensitive analog device, and proper layout and placement are crucial. It is recommended to keep the device away from high-frequency sources, use a solid ground plane, and keep analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device to minimize noise.
  • The AD7791BRMZ-REEL requires calibration to achieve optimal accuracy. The calibration process involves adjusting the offset and gain of the device using the CAL pin. The calibration process should be performed at the desired operating temperature and with the device powered from a stable voltage source.
  • The recommended power-up sequence for the AD7791BRMZ-REEL is to first apply the analog power supply (AVDD) followed by the digital power supply (DVDD). The digital power supply should be powered up after the analog power supply has reached its nominal value. This sequence helps prevent damage or malfunction of the device.
  • The AD7791BRMZ-REEL's digital interface is a 3-wire SPI interface. The device operates in slave mode, and the master device should provide the clock signal. The SPI interface timing requirements include a clock frequency of up to 2 MHz, a minimum clock pulse width of 200 ns, and a minimum data setup time of 100 ns.
  • The AD7791BRMZ-REEL is a sensitive analog device, and thermal considerations are crucial. The device should be operated within the recommended temperature range of -40°C to 125°C. Thermal management techniques such as heat sinking and thermal interface materials can be used to ensure reliable operation over temperature.
