- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7792BRU
- Part Number AD7792BRU
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - TSSOP
- Released Date Nov 15, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7792BRU Details
-
Manufacturer Part Number:
AD7792BRU
-
Source Url Status Check Date:
2013-05-01 14:56:20.442
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
TSSOP
-
Package Description:
MO-153-AB, TSSOP-16
-
Pin Count:
16
-
Manufacturer Package Code:
RU-16
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Analog Devices Inc
AD7792BRU Frequently Asked Questions (FAQs)
-
The AD7792BRU requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
-
To optimize the AD7792BRU's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, choosing the right clock frequency, and optimizing the filter settings. Additionally, it is crucial to ensure that the device is properly calibrated and that the analog input signals are within the recommended range.
-
Common pitfalls to avoid when using the AD7792BRU include incorrect pin connections, inadequate power supply decoupling, and insufficient analog input signal conditioning. Additionally, failing to properly calibrate the device, using incorrect gain and offset settings, and not following the recommended layout and placement guidelines can also lead to suboptimal performance.
-
To troubleshoot issues with the AD7792BRU, start by verifying that the device is properly powered and that the analog input signals are within the recommended range. Check the device's registers and calibration settings to ensure they are correct. Use an oscilloscope to verify the analog input signals and the device's output. If issues persist, consult the datasheet and application notes for guidance.
-
The AD7792BRU is a high-precision analog-to-digital converter, and as such, it is sensitive to temperature changes. It is essential to ensure that the device operates within the recommended temperature range (−40°C to +105°C) and that it is properly heat-sinked to prevent overheating. Additionally, thermal gradients should be minimized to prevent thermal-induced errors.
Trust Checks
Community Provided
System Verified
Community Approved
AD7792BRU Overview

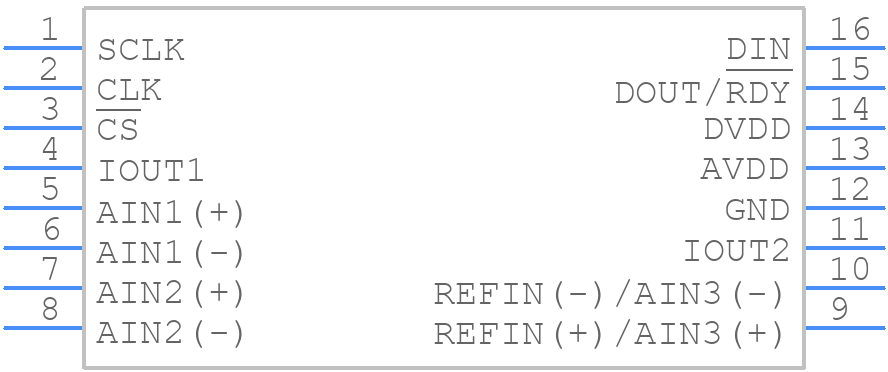

Use the download button to access the AD7792BRU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD779,
or try a keyword search, such as Analog to Digital Converters
