AD7792BRUZ-REEL - Analog Devices

Description: Analog To Digital Converters (ADCs) 16 470 3 SPI, DSP 2.7V~5.25V TSSOP-16 RoHS

Download AD7792BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

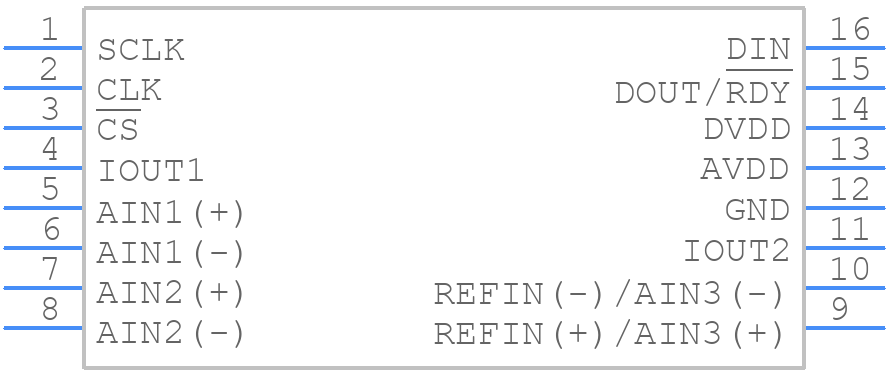

Symbol
AD7792BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7792BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7792BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7792BRUZ-REEL Details

  • Manufacturer Part Number:

    AD7792BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153-AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.3 V

  • Analog Input Voltage-Min:

    -0.3 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7792BRUZ-REEL Frequently Asked Questions (FAQs)

  • The AD7792BRUZ-REEL is a sensitive analog device, and proper layout and placement are crucial. It is recommended to keep the device away from high-frequency sources, use a solid ground plane, and keep analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device to minimize noise.
  • The AD7792BRUZ-REEL has a built-in calibration mechanism. To calibrate the device, apply a known voltage to the input pins and use the calibration registers to adjust the gain and offset. The device also has a self-calibration feature that can be enabled to automatically adjust the gain and offset.
  • The recommended power-up sequence for the AD7792BRUZ-REEL is to first apply the analog supply voltage (AVDD) followed by the digital supply voltage (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or malfunction.
  • The AD7792BRUZ-REEL has a SPI-compatible digital interface. The device operates in slave mode, and the master device should provide the clock signal. The recommended clock frequency is between 100 kHz and 2 MHz. The device also has a maximum latency of 100 ns for the SPI interface.
  • The AD7792BRUZ-REEL is rated for operation over a temperature range of -40°C to 125°C. To ensure reliable operation, it is recommended to keep the device within a temperature range of 0°C to 70°C for optimal performance. Additionally, the device should be mounted on a PCB with a thermal pad to dissipate heat effectively.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7792BRUZ-REEL Overview

Use the download button to access the AD7792BRUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD779, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
