AD7793BRUZ - Analog Devices

Description: AD7793BRUZ, 24-Bit Analogue to Digital Converter, Differential, SPI, 16-Pin TSSOP

Download AD7793BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

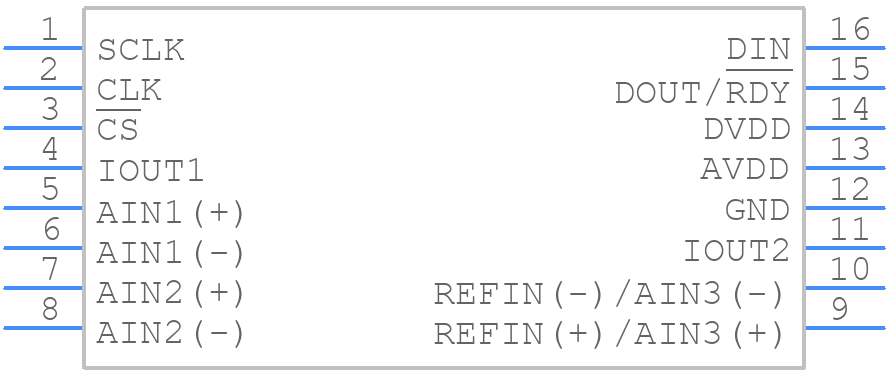

AD7793BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7793BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 PIN TSSOP
click to zoom
3D Models
AD7793BRUZ - Analog Devices - 3D model - Small Outline Packages - 16 PIN TSSOP
click to zoom

AD7793BRUZ Details

  • Manufacturer Part Number:

    AD7793BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153-AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.3 V

  • Analog Input Voltage-Min:

    -0.3 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    3

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7793BRUZ Frequently Asked Questions (FAQs)

  • The AD7793BRUZ is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to keep the analog and digital grounds separate, and to place the device close to the analog signal sources. A solid ground plane and a low-impedance power supply are also essential.
  • To optimize the AD7793BRUZ for low noise performance, ensure that the analog input signals are properly filtered and buffered, and that the device is operated in a low-noise environment. Additionally, use a low-noise voltage reference, and consider using a noise-reducing capacitor on the REFIN pin.
  • The maximum sampling rate of the AD7793BRUZ is 4.17 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency and the conversion time of the ADC.
  • Yes, the AD7793BRUZ can be used with an external voltage reference. The device has a dedicated REFIN pin that can be connected to an external voltage reference. This allows for greater flexibility and accuracy in the ADC's conversion process.
  • The AD7793BRUZ has a built-in calibration feature that allows for offset and gain calibration. The device can be calibrated using the CAL pin, which is used to select the calibration mode. The calibration process involves applying a known input voltage and adjusting the device's internal registers to achieve the desired accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7793BRUZ Overview

Use the download button to access the AD7793BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD779, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
