AD7794CRUZ - Analog Devices

Description: AD7794CRUZ, 24-Bit Analogue to Digital Converter, Differential, SPI, 24-Pin TSSOP

Download AD7794CRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

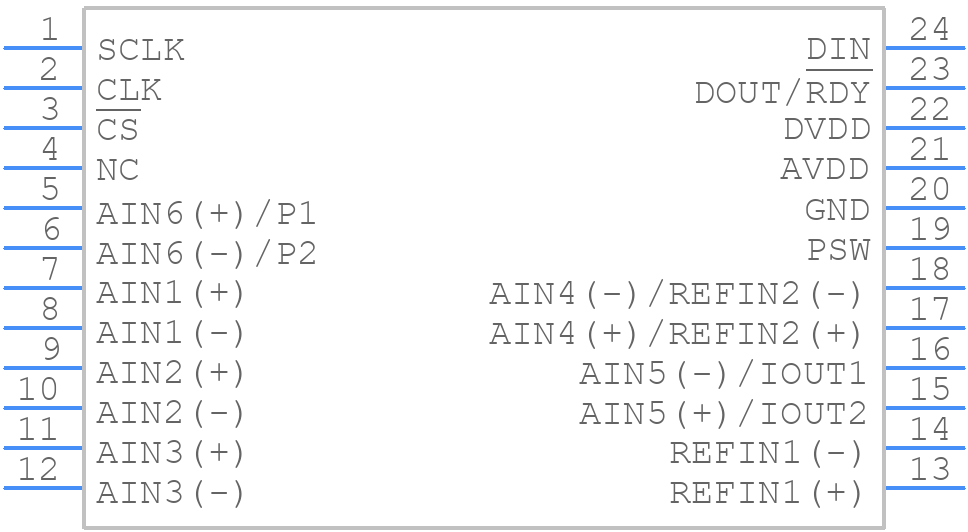

Symbol
AD7794CRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7794CRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7794CRUZ
click to zoom
3D Models
AD7794CRUZ - Analog Devices - 3D model - Small Outline Packages - AD7794CRUZ
click to zoom

AD7794CRUZ Details

  • Manufacturer Part Number:

    AD7794CRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AD, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    6

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7794CRUZ Frequently Asked Questions (FAQs)

  • The AD7794CRUZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7794CRUZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain, filter settings, and data rate. Additionally, ensuring proper signal conditioning, using the correct reference voltage, and optimizing the analog front-end design can also improve performance.
  • The AD7794CRUZ requires a clean and stable power supply to ensure optimal performance. It is recommended to use a low-noise, low-dropout regulator (LDO) to power the device. Additionally, decoupling capacitors should be placed close to the device's power pins, and the power supply should be filtered to minimize noise and ripple.
  • Common issues with the AD7794CRUZ include noise, oscillations, and incorrect readings. To troubleshoot these issues, it is essential to check the device's power supply, analog signal sources, and layout. Additionally, verifying the device's configuration, checking for noise sources, and using the device's built-in diagnostic features can help identify and resolve issues.
  • The AD7794CRUZ is a high-performance device that can generate heat during operation. It is essential to ensure proper thermal management, including providing adequate airflow, using a heat sink if necessary, and ensuring that the device is operated within its recommended temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7794CRUZ Overview

Use the download button to access the AD7794CRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD779, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
