AD7796BRUZ - Analog Devices

Description: AD7796BRUZ, 16 bit ADC Differential, SPI, 16-Pin TSSOP

Download AD7796BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

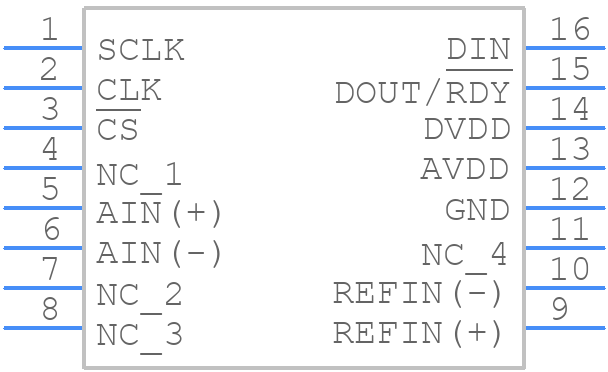

AD7796BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7796BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7796BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7796BRUZ Details

  • Manufacturer Part Number:

    AD7796BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    4.15 V

  • Analog Input Voltage-Min:

    0.3 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.325 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7796BRUZ Frequently Asked Questions (FAQs)

  • The AD7796BRUZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7796BRUZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, choosing the right clock frequency, and optimizing the filter settings. Additionally, it is crucial to ensure that the device is properly calibrated and that the analog input signals are within the recommended range.
  • Common pitfalls to avoid when using the AD7796BRUZ include incorrect pin connections, inadequate power supply decoupling, and insufficient analog input signal filtering. Additionally, failing to properly calibrate the device, using incorrect gain and offset settings, and not following the recommended layout and placement guidelines can also lead to suboptimal performance.
  • To troubleshoot issues with the AD7796BRUZ, start by verifying that the device is properly powered and that the analog input signals are within the recommended range. Check the device's registers and calibration settings to ensure they are correct. Use an oscilloscope to verify the analog input signals and the device's output. If issues persist, consult the datasheet and application notes for guidance.
  • The AD7796BRUZ is a high-precision analog-to-digital converter, and as such, it is sensitive to temperature changes. It is essential to ensure that the device operates within the recommended temperature range (−40°C to +105°C) and that adequate thermal management is implemented to prevent overheating. This includes using a heat sink or thermal pad, and ensuring good airflow around the device.
