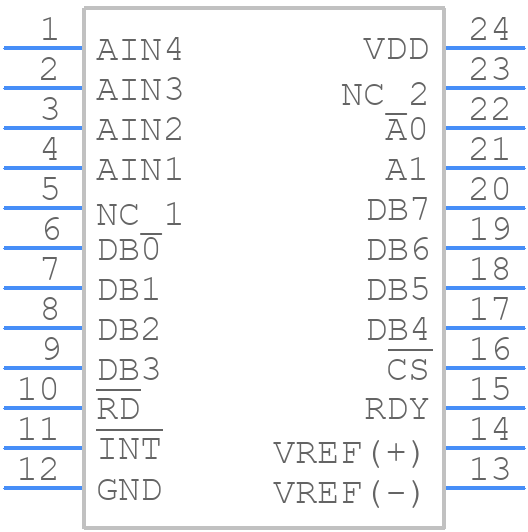

AD7824KRZ - Analog Devices

AD7824KRZ Details

• Manufacturer Part Number:

  AD7824KRZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  SOIC

• Package Description:

  MS-013AD, SOIC-24

• Pin Count:

  24

• Manufacturer Package Code:

  RW-24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Analog Input Voltage-Max:

  5 V

• Conversion Time-Max:

  2.4 µs

• Converter Type:

  ADC, FLASH METHOD

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e3

• Length:

  15.4 mm

• Linearity Error-Max (EL):

  0.3906%

• Moisture Sensitivity Level:

  1

• Number of Analog In Channels:

  4

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  BINARY, COMPLEMENTARY OFFSET BINARY

• Output Format:

  PARALLEL, 8 BITS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.1 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  16 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm
