AD7865ASZ-3 - Analog Devices

Description: AD7865ASZ-3, 14 bit ADC, Parallel, 44-Pin MQFP

Download AD7865ASZ-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

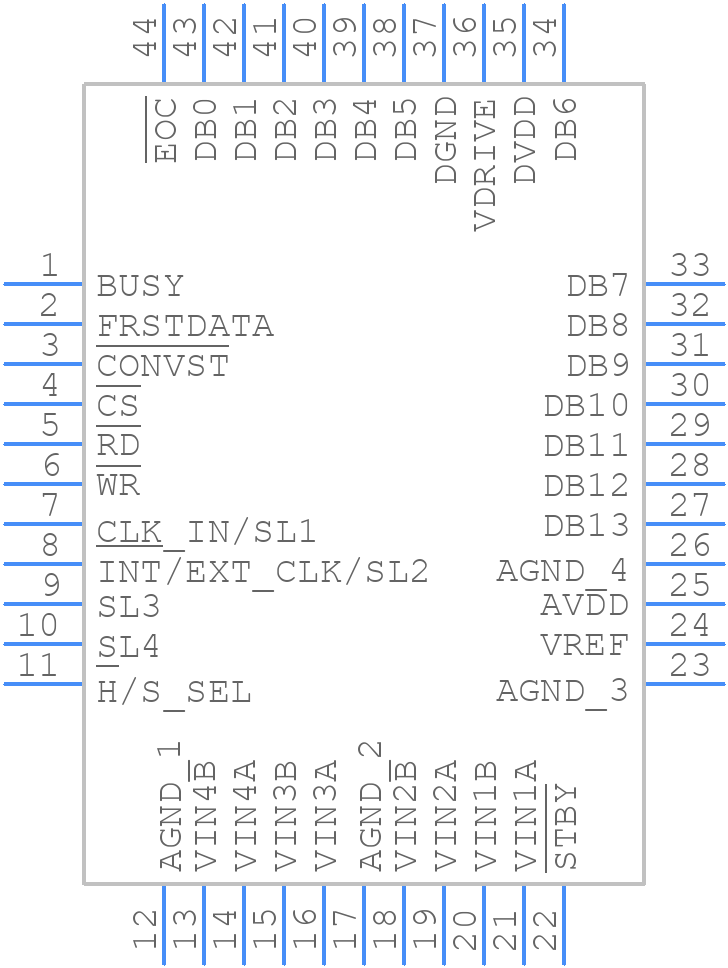

AD7865ASZ-3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

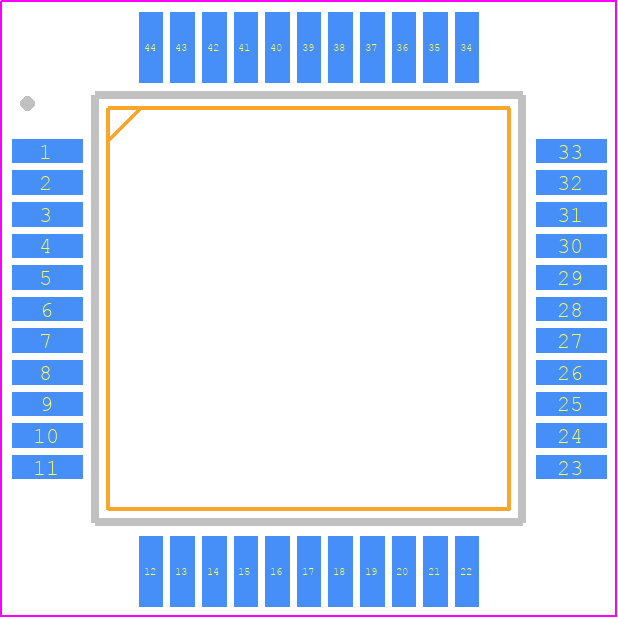

AD7865ASZ-3 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - (S-44)-ren1
click to zoom
3D Models
AD7865ASZ-3 - Analog Devices - 3D model - Quad Flat Packages - (S-44)-ren1
click to zoom

AD7865ASZ-3 Details

  • Manufacturer Part Number:

    AD7865ASZ-3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, QFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    S-44-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    2.4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP44,.57SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.35 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

AD7865ASZ-3 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Also, use a low-ESR capacitor for the VREF pin and a 0.1uF capacitor for the AVDD pin.
  • The AD7865ASZ-3 has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The calibration process involves shorting the analog input to the internal reference voltage and then adjusting the offset and gain to achieve accurate conversions.
  • The maximum sampling rate of the AD7865ASZ-3 is 200 kSPS. However, the actual sampling rate may be limited by the system clock frequency, the conversion time, and the settling time of the analog input signal.
  • In such cases, check the power supply voltage, analog input signal, and reference voltage to ensure they are within the recommended operating conditions. Also, verify that the control register settings are correct and the calibration process has been performed correctly. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the AD7865ASZ-3 can be used in a multi-channel application by using the channel select pins (CH0-CH3) to select the desired analog input channel. The AD7865ASZ-3 can convert up to four analog input channels.
