AD7865BSZ-2 - Analog Devices

Description: AD7865BSZ-2, 14 bit ADC, Parallel, 44-Pin MQFP

Download AD7865BSZ-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

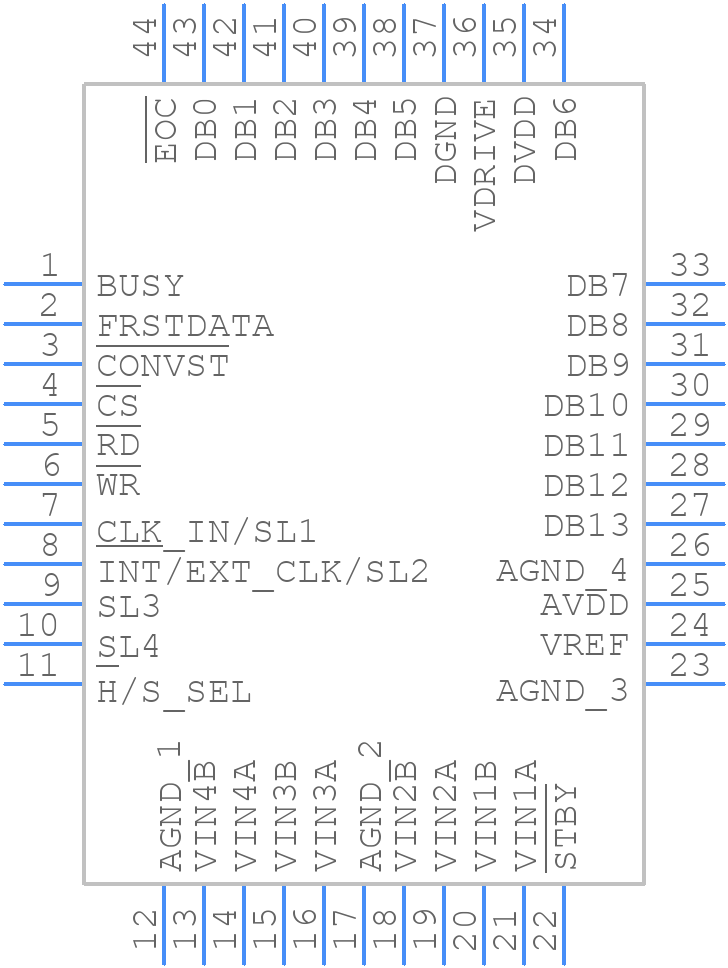

Symbol
AD7865BSZ-2 - Analog Devices - PCB symbol
click to zoom

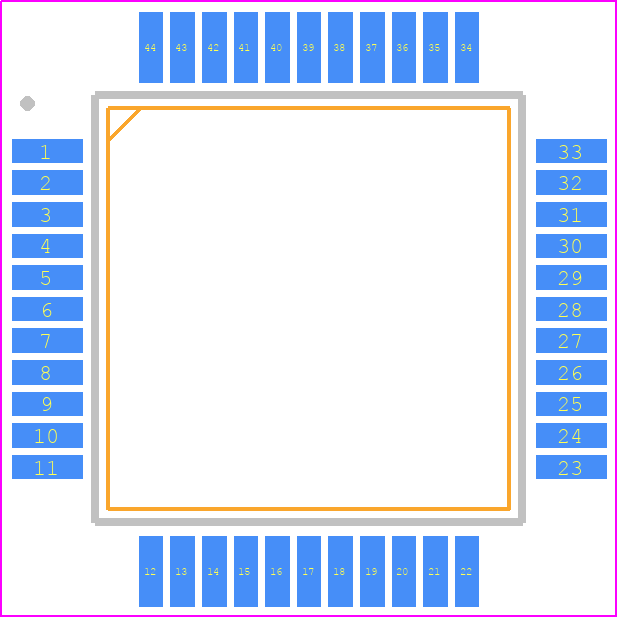

PCB Footprints
AD7865BSZ-2 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - (S-44)-ren1
click to zoom
3D Models
AD7865BSZ-2 - Analog Devices - 3D model - Quad Flat Packages - (S-44)-ren1
click to zoom

AD7865BSZ-2 Details

  • Manufacturer Part Number:

    AD7865BSZ-2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, QFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    S-44-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    2.4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.0092%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP44,.57SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.35 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

AD7865BSZ-2 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Also, use a low-ESR capacitor for the VREF pin and a 0.1uF capacitor for the AVDD pin.
  • The AD7865BSZ-2 has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The calibration process involves a self-calibration sequence that adjusts the internal offset and gain to ensure accurate conversions.
  • The recommended power-up sequence is to first apply the analog power supply (AVDD) and then the digital power supply (DVDD). The digital power supply should be powered up after the analog power supply has reached its nominal value.
  • The AD7865BSZ-2 outputs data in a 16-bit, two's complement format. The byte ordering is most significant byte (MSB) first, followed by the least significant byte (LSB). The output data can be configured to be either right-justified or left-justified.
  • The maximum sampling rate of the AD7865BSZ-2 is 250 kSPS. The power consumption of the device increases with the sampling rate, so it's essential to consider the power consumption when selecting the sampling rate.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7865BSZ-2 Overview

Use the download button to access the AD7865BSZ-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD786, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
