AD7870KNZ - Analog Devices

Description: Single Channel Single ADC SAR 100ksps 12-bit Parallel/Serial 24-Pin PDIP N Tube

Download AD7870KNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

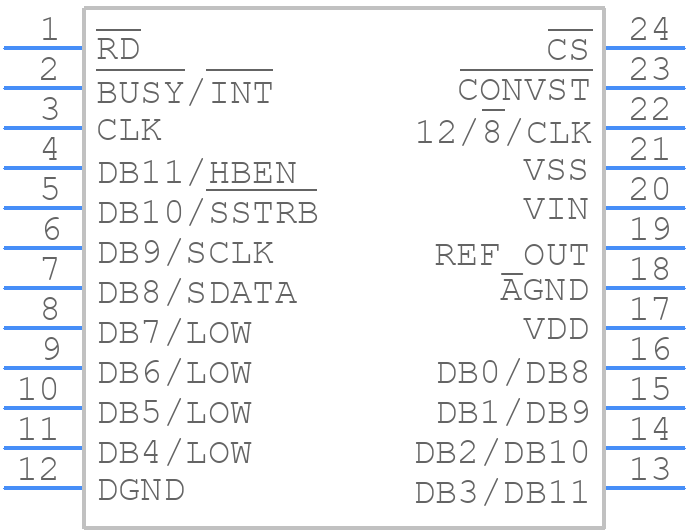

AD7870KNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7870KNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD7870KNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD7870KNZ Details

  • Manufacturer Part Number:

    AD7870KNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, MS-001, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3 V

  • Analog Input Voltage-Min:

    -3 V

  • Conversion Time-Max:

    9 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.75 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7870KNZ Frequently Asked Questions (FAQs)

  • It's essential to follow a good layout and placement strategy to minimize noise and ensure accurate conversions. Place the AD7870KNZ close to the analog signal sources, use a ground plane, and keep digital and analog traces separate. Refer to the AD7870KNZ evaluation board layout as a reference.
  • To minimize power consumption, use the lowest possible clock frequency, disable the internal reference voltage (if not needed), and use the power-down mode when the converter is not in use. Additionally, consider using a lower supply voltage (e.g., 2.7V instead of 5V) if possible.
  • Use a low-pass filter (e.g., RC filter) to remove high-frequency noise and aliasing. The filter's cutoff frequency should be set to at least 10 times the maximum signal frequency. Additionally, consider using a buffer amplifier to drive the analog input signals.
  • The AD7870KNZ outputs data in a 16-bit, two's complement format. Ensure that your microcontroller or processor can handle this format correctly. You may need to perform byte swapping or sign extension depending on your system's requirements.
  • Perform a full-scale calibration by applying a known input voltage (e.g., 0V and VREF) and storing the resulting output codes. Use these codes to calculate the gain and offset values. You can also use the AD7870KNZ's internal calibration feature, which performs a self-calibration routine.
