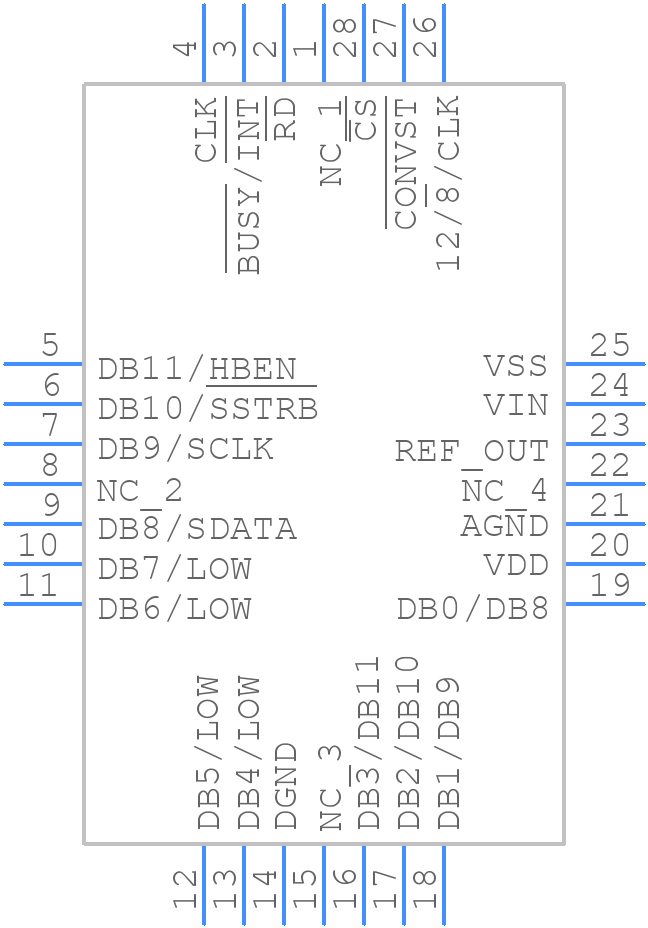

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7870KPZ
- Part Number AD7870KPZ
- Manufacturer Analog Devices
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Plastic Leaded Chip Carrier
- Footprint Name Plastic Leaded Chip Carrier - PLCC 28--
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7870KPZ Details
-
Manufacturer Part Number:
AD7870KPZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
LCC
-
Package Description:
ROHS COMPLIANT, PLASTIC, MO-047AB, LCC-28
-
Pin Count:
28
-
Manufacturer Package Code:
P-28A
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD7870KPZ Frequently Asked Questions (FAQs)
-
The AD7870KPZ is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
-
The AD7870KPZ has an internal calibration mechanism that can be initiated through the CAL pin. The calibration process involves shorting the CAL pin to ground, which triggers the ADC to perform a self-calibration routine. The calibration data is then stored in the ADC's internal registers. It is recommended to perform calibration after power-up and whenever the operating conditions change.
-
The maximum sampling rate of the AD7870KPZ is 125 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the ADC's conversion time, and the interface protocol used. It is recommended to consult the datasheet and application notes for specific guidance on achieving the maximum sampling rate.
-
The AD7870KPZ is specified to operate from a 2.7V to 5.25V power supply. However, the ADC's performance may degrade at higher supply voltages. It is recommended to operate the ADC at a supply voltage of 3.3V or lower to ensure optimal performance and minimize power consumption.
-
The AD7870KPZ has a serial interface that can be connected to a microcontroller's SPI or I2C port. The ADC's interface protocol is compatible with most microcontrollers, and the communication protocol can be configured through the ADC's control registers. It is recommended to consult the datasheet and application notes for specific guidance on interfacing the ADC with a microcontroller.
Trust Checks
Community Provided
System Verified
Community Approved
AD7870KPZ Overview
Use the download button to access the AD7870KPZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD787,
or try a keyword search, such as Analog to Digital Converters
