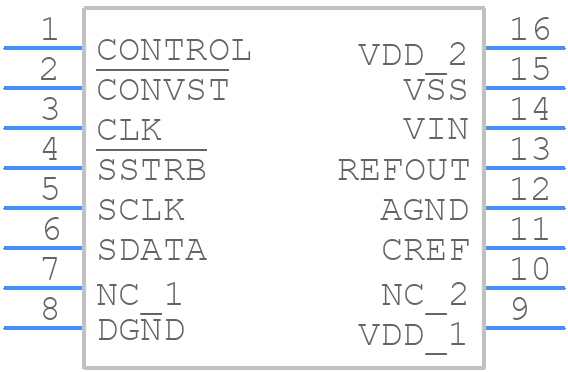

AD7872BR - Analog Devices

AD7872BR Details

• Manufacturer Part Number:

  AD7872BR

• Source Url Status Check Date:

  2013-05-01 14:56:21.329

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  SOIC-16

• Pin Count:

  16

• Manufacturer Package Code:

  RW-16

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Analog Input Voltage-Max:

  3 V

• Analog Input Voltage-Min:

  -3 V

• Conversion Time-Max:

  11 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e0

• Length:

  10.3 mm

• Linearity Error-Max (EL):

  0.0061%

• Moisture Sensitivity Level:

  3

• Negative Supply Voltage-Nom:

  -5 V

• Number of Analog In Channels:

  1

• Number of Bits:

  14

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  2S COMPLEMENT BINARY

• Output Format:

  SERIAL, PARALLEL, 8 BITS, PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.083 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  2.64 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.52 mm
