AD7872JNZ - Analog Devices

Description: AD7872JNZ, 14 bit ADC Serial, 16-Pin PDIP

Download AD7872JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

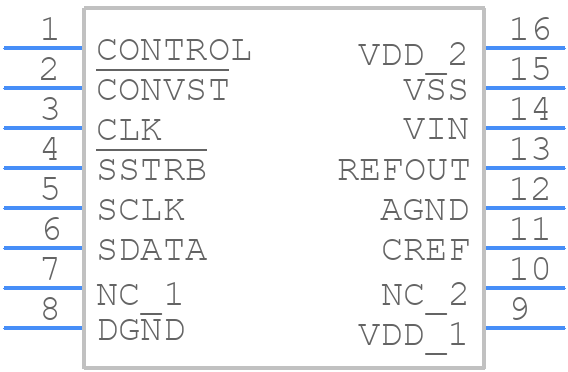

Symbol
AD7872JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7872JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16(inch)
click to zoom
3D Models
AD7872JNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16(inch)
click to zoom

AD7872JNZ Details

  • Manufacturer Part Number:

    AD7872JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3 V

  • Analog Input Voltage-Min:

    -3 V

  • Conversion Time-Max:

    10.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.055 mm

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.083 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    4.32 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7872JNZ Frequently Asked Questions (FAQs)

  • The AD7872JNZ is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
  • To optimize the AD7872JNZ's performance, it is essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the correct gain, offset, and sampling rate, as well as configuring the internal clock and reference voltage. Additionally, the ADC's input range and common-mode voltage should be matched to the signal source's characteristics.
  • The AD7872JNZ's performance can be affected by temperature variations. The ADC's offset and gain drift with temperature, which can result in errors in the conversion results. It is essential to consider the operating temperature range and to calibrate the ADC accordingly. Additionally, the ADC's internal reference voltage can be affected by temperature, which can impact the conversion results.
  • The AD7872JNZ can be interfaced with a microcontroller or FPGA through its SPI-compatible serial interface. The ADC's output data can be read through the serial interface, and the ADC's settings can be configured through the interface as well. It is essential to follow the interface timing and protocol requirements to ensure reliable communication.
  • Common pitfalls to avoid when using the AD7872JNZ include incorrect PCB layout and component placement, inadequate decoupling, and incorrect configuration of the ADC's settings. Additionally, not considering the ADC's input range and common-mode voltage can result in errors in the conversion results. It is also essential to follow the recommended operating conditions and to avoid exceeding the ADC's maximum ratings.
