AD7872KRZ - Analog Devices

Description: Analog to Digital Converters - ADC CMOS Complete 14-Bit Sampling

Download AD7872KRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

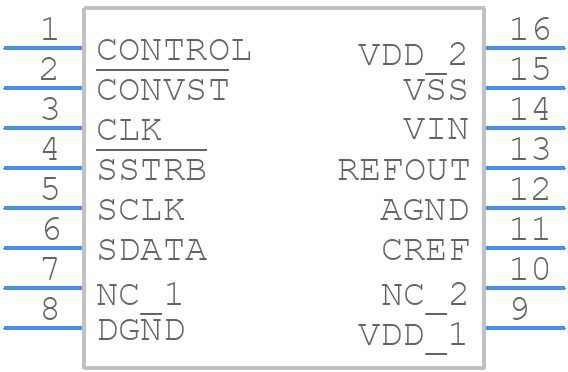

AD7872KRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7872KRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
AD7872KRZ - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

AD7872KRZ Details

  • Manufacturer Part Number:

    AD7872KRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3 V

  • Analog Input Voltage-Min:

    -3 V

  • Conversion Time-Max:

    10.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.083 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.52 mm

AD7872KRZ Frequently Asked Questions (FAQs)

  • The AD7872KRZ is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed close to the power pins, and the digital lines should be kept away from the analog lines.
  • The AD7872KRZ has an internal calibration mechanism that can be initiated by setting the CAL bit in the control register. The calibration process involves a self-calibration sequence that adjusts the ADC's offset and gain errors. The calibration process can be initiated at power-up or during normal operation. It is recommended to consult the datasheet for the specific calibration procedure.
  • The maximum sampling rate of the AD7872KRZ is 125 kSPS (kilo-samples per second). However, the actual sampling rate may be limited by the system clock frequency, the conversion mode, and the interface mode. It is recommended to consult the datasheet for the specific sampling rate limitations.
  • Yes, the AD7872KRZ can be used with an external reference voltage. The ADC has a dedicated reference input pin (REFIN) that can be connected to an external reference voltage source. The external reference voltage should be within the specified range (2.5 V to 5.5 V) and should be stable and noise-free.
  • The AD7872KRZ outputs 12-bit or 16-bit digital data, depending on the mode of operation. The output data format can be either straight binary or twos complement. The user should consult the datasheet to understand the output data format and handle it accordingly in their system.
