AD7876BNZ - Analog Devices

Description: AD7876BNZ, 12 bit ADC Serial, 24-Pin PDIP

Download AD7876BNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

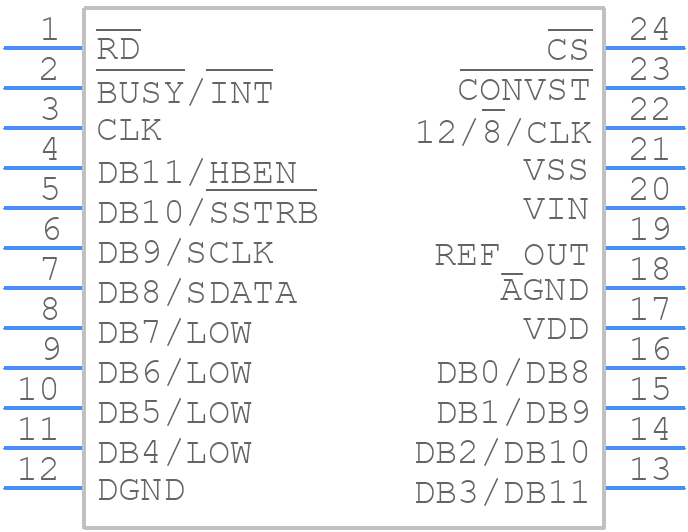

AD7876BNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7876BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD7876BNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD7876BNZ Details

  • Manufacturer Part Number:

    AD7876BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, MS-001, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    9 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.75 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7876BNZ Frequently Asked Questions (FAQs)

  • The AD7876BNZ requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7876BNZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, optimizing the sampling rate, and ensuring proper filtering and signal conditioning. Additionally, it is recommended to consult the device's datasheet and application notes for specific guidance.
  • Common pitfalls to avoid when using the AD7876BNZ include incorrect pin connections, inadequate power supply decoupling, and insufficient signal filtering. Additionally, failing to follow proper layout and placement guidelines, and not accounting for thermal considerations can also impact the device's performance.
  • To troubleshoot issues with the AD7876BNZ, start by verifying the device's power supply and clock signals. Check for proper pin connections and ensure that the device is properly configured. Use oscilloscopes and logic analyzers to debug the digital signals, and consult the device's datasheet and application notes for guidance.
  • The AD7876BNZ is a high-performance ADC that can generate heat during operation. It is essential to ensure proper thermal management, including providing adequate airflow, using thermal interfaces, and following proper PCB design guidelines to minimize thermal resistance.
