AD7876BRZ - Analog Devices

Description: AD7876BRZ, 12 bit ADC Serial, 24-Pin SOIC W

Download AD7876BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

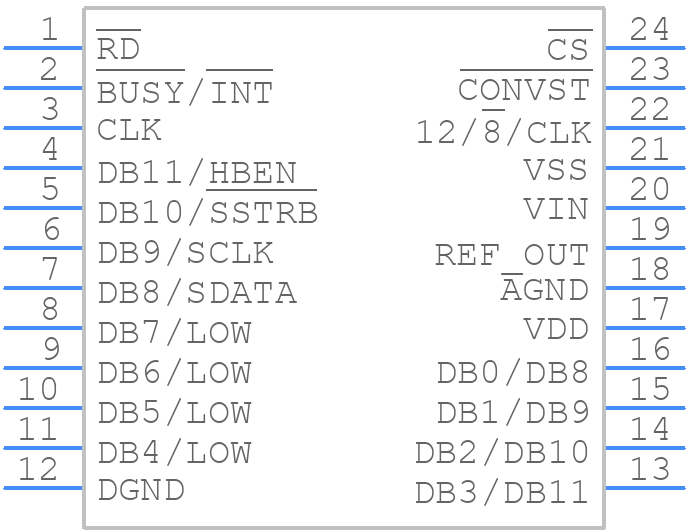

Symbol
AD7876BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7876BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-W
click to zoom
3D Models
AD7876BRZ - Analog Devices - 3D model - Small Outline Packages - SOIC-W
click to zoom

AD7876BRZ Details

  • Manufacturer Part Number:

    AD7876BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    9 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

AD7876BRZ Frequently Asked Questions (FAQs)

  • The AD7876BRZ requires careful layout and routing to minimize noise and ensure accurate conversions. A recommended layout is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the analog signal traces away from the digital signal traces.
  • To optimize the AD7876BRZ for low-power operation, use the power-down mode, reduce the clock frequency, and minimize the number of conversions per second. Additionally, consider using a lower supply voltage and reducing the analog input range.
  • The recommended calibration procedure for the AD7876BRZ involves a full-scale calibration, followed by a zero-scale calibration. The full-scale calibration involves applying the maximum analog input voltage and adjusting the offset and gain registers to achieve the desired output code. The zero-scale calibration involves applying a zero-volt input and adjusting the offset register to achieve the desired output code.
  • To handle overvoltage and undervoltage conditions with the AD7876BRZ, use external voltage limiting resistors and diodes to clamp the input voltage to within the specified range. Additionally, consider using a voltage regulator to regulate the supply voltage and prevent overvoltage conditions.
  • The recommended method for synchronizing the AD7876BRZ with an external clock is to use the SYNC pin to synchronize the conversion process with the external clock. The SYNC pin should be driven by a clock signal that is synchronized with the external clock.
