AD7876CRZ - Analog Devices

Description: ANALOG DEVICES - AD7876CRZ - ADC, 12BIT, 100KSPS, WSOIC-24

Download AD7876CRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

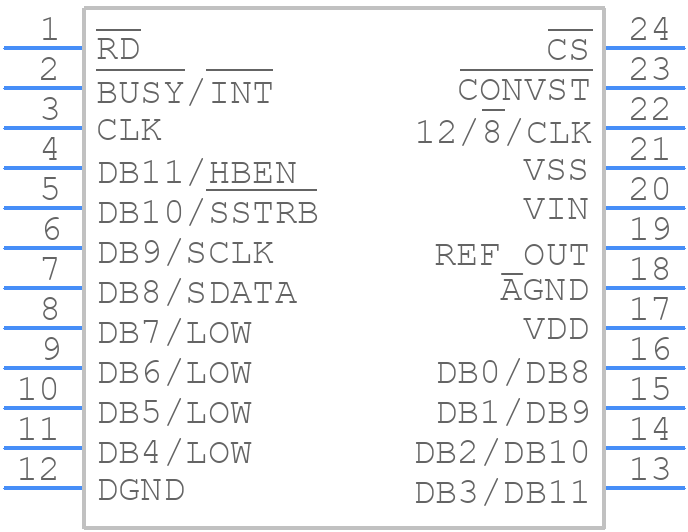

AD7876CRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7876CRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD7876CRZ - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD7876CRZ Details

  • Manufacturer Part Number:

    AD7876CRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    9 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7876CRZ Frequently Asked Questions (FAQs)

  • The AD7876CRZ requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, the device should be placed away from high-frequency sources and heat sources.
  • To optimize the AD7876CRZ for low-power operation, it is recommended to use the lowest possible clock frequency, disable the internal reference, and use the power-down mode when not in use. Additionally, the device can be operated in a low-power mode by reducing the sampling rate and using the internal clock.
  • The AD7876CRZ requires a two-point calibration procedure to ensure accurate conversions. The device should be calibrated at two known input voltages, typically 0V and the full-scale voltage, to determine the gain and offset errors. The calibration data should be stored in an external memory or registers for use during normal operation.
  • The AD7876CRZ has built-in overvoltage and undervoltage protection, but it is still important to take precautions to prevent damage. It is recommended to use external voltage limiting circuits or voltage regulators to prevent overvoltage conditions. For undervoltage conditions, the device can be powered down or put into a low-power mode to prevent damage.
  • The AD7876CRZ uses a serial interface protocol, and the recommended interface protocol is the SPI (Serial Peripheral Interface) protocol. The device can also be interfaced with a microcontroller or DSP using a parallel interface.
