AD7895ANZ-2 - Analog Devices

Description: Analog Devices AD7895ANZ-2, 12 bit Serial ADC,, 8-Pin PDIP

Download AD7895ANZ-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

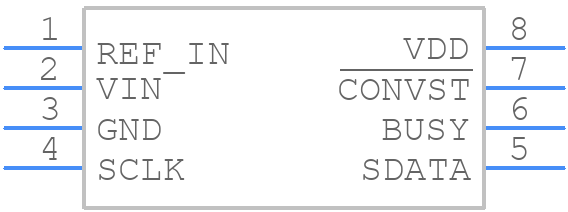

Symbol
AD7895ANZ-2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7895ANZ-2 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-8)
click to zoom
3D Models
AD7895ANZ-2 - Analog Devices - 3D model - Dual-In-Line Packages - (N-8)
click to zoom

AD7895ANZ-2 Details

  • Manufacturer Part Number:

    AD7895ANZ-2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, MINI, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    3.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7895ANZ-2 Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane is recommended. Use a star-grounding technique, where all analog and digital grounds are connected to a single point, and keep the analog and digital circuits separate. Also, use a low-ESR capacitor for decoupling and place it close to the AD7895ANZ-2.
  • The AD7895ANZ-2 has an internal calibration circuit. To calibrate, apply a known input voltage, then write the calibration code to the device. The calibration procedure is described in the datasheet, and it's recommended to perform calibration after power-up and after any changes to the reference voltage or input range.
  • The maximum input voltage range for the AD7895ANZ-2 is ±VREF (typically 2.5V or 5V). For overvoltage protection, use external resistors and diodes to limit the input voltage to within the specified range. Also, consider using a voltage limiter or clamp circuit to prevent damage from excessive input voltages.
  • The AD7895ANZ-2 has a serial interface that can be connected to a microcontroller. The device supports SPI (Serial Peripheral Interface) and QSPI (Queued Serial Peripheral Interface) protocols. The interface timing and protocol details are described in the datasheet.
  • The AD7895ANZ-2 has a typical power consumption of 15mW at 3V supply. To reduce power consumption, use the power-down mode when not converting, reduce the clock frequency, and use a lower supply voltage if possible. Also, consider using a low-power microcontroller and optimizing the system design for low power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7895ANZ-2 Overview

Use the download button to access the AD7895ANZ-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD789, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
