AD7895ANZ-3 - Analog Devices

Description: Analog Devices AD7895ANZ-3, 12 bit Serial ADC,, 8-Pin PDIP

Download AD7895ANZ-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

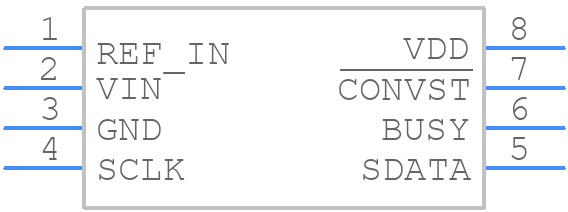

Symbol
AD7895ANZ-3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7895ANZ-3 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP_8
click to zoom
3D Models
AD7895ANZ-3 - Analog Devices - 3D model - Dual-In-Line Packages - PDIP_8
click to zoom

AD7895ANZ-3 Details

  • Manufacturer Part Number:

    AD7895ANZ-3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, MINI, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    3.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7895ANZ-3 Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7895ANZ-3 involves separating analog and digital signals, using a solid ground plane, and keeping the analog input traces as short as possible. Additionally, it's recommended to use a low-pass filter on the analog input pins to reduce noise.
  • The POR and BOR features of the AD7895ANZ-3 can be handled by connecting the POR pin to a capacitor and a pull-up resistor to VCC, and the BOR pin to a capacitor and a pull-up resistor to VCC. This ensures that the device resets properly during power-on and brown-out conditions.
  • The recommended clock frequency for the AD7895ANZ-3 is between 1 MHz and 4 MHz. The conversion rate of the device is dependent on the clock frequency, with a higher clock frequency resulting in a faster conversion rate. However, increasing the clock frequency also increases the power consumption of the device.
  • The AD7895ANZ-3 can be calibrated by applying a known input voltage and adjusting the offset and gain registers to achieve optimal accuracy and linearity. The device also has a built-in calibration mode that can be used to calibrate the device automatically.
  • The AD7895ANZ-3 is sensitive to temperature variations, which can affect its accuracy and linearity. To compensate for temperature variations, it's recommended to use a temperature sensor to monitor the temperature and adjust the offset and gain registers accordingly. Additionally, the device has a built-in temperature compensation feature that can be used to compensate for temperature variations.
