- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7896AR
- Part Number AD7896AR
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - R-8 (SOIC)
- Released Date May 20, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7896AR Details
-
Manufacturer Part Number:
AD7896AR
-
Source Url Status Check Date:
2013-05-01 14:56:21.721
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
MS-012AA, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
R-8
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Analog Devices Inc
AD7896AR Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper operation and prevents any potential latch-up conditions.
-
If the analog input signal exceeds the maximum rating, it's recommended to use an external voltage limiter or clamp circuit to prevent damage to the device. Additionally, consider using a buffer amplifier or an attenuator to reduce the signal amplitude.
-
Clock jitter can affect the AD7896AR's performance by introducing noise and reducing the converter's effective resolution. It's recommended to use a low-jitter clock source and to consider using a clock jitter attenuator or a phase-locked loop (PLL) to minimize the impact of clock jitter.
-
Yes, the AD7896AR can be used in a multiplexed configuration. However, it's essential to ensure that the multiplexer switch-on resistance is low enough to maintain the required signal bandwidth and to minimize the impact of switch-on time on the converter's performance.
-
To optimize the layout and grounding for the AD7896AR, follow good analog design practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing noise coupling between signals. Additionally, consider using a star-ground configuration and placing the AD7896AR close to the analog signal source.
Trust Checks
System Verified
AD7896AR Overview

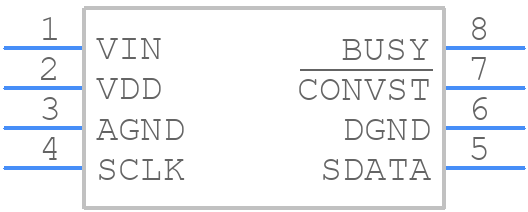

Use the download button to access the AD7896AR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD789,
or try a keyword search, such as Analog to Digital Converters
