AD7896ARZ-REEL - Analog Devices

Description: Analog to Digital Converters - ADC 12-BIT SAMPLING A/D IC

Download AD7896ARZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

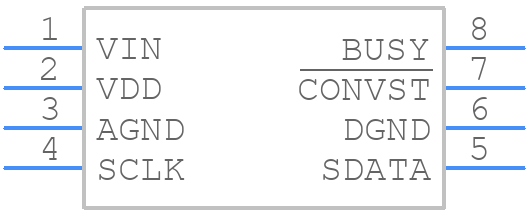

Symbol
AD7896ARZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7896ARZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-08
click to zoom
3D Models
AD7896ARZ-REEL - Analog Devices - 3D model - Small Outline Packages - R-08
click to zoom

AD7896ARZ-REEL Details

  • Manufacturer Part Number:

    AD7896ARZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AD7896ARZ-REEL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the VREF pin and a 0.1uF capacitor for the AVDD pin.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves shorting the VIN+ and VIN- pins together and applying a known voltage to the REF pin. Also, make sure to use a high-precision voltage reference and a low-noise analog power supply.
  • The maximum conversion rate of the AD7896ARZ-REEL is 250 kSPS. However, the power consumption increases with the conversion rate. To minimize power consumption, consider using a lower conversion rate or using the device's power-down mode when not in use.
  • To handle overvoltage conditions, use external protection diodes or voltage clamps to limit the voltage on the analog input pins. Additionally, consider using a voltage limiter or a resistive divider network to attenuate the input signal.
  • The recommended operating temperature range for the AD7896ARZ-REEL is -40°C to 85°C. Operating the device outside this range may affect its performance, including increased noise, reduced accuracy, and decreased conversion speed.
