AD7896ARZ-REEL7 - Analog Devices

Description: Analog to Digital Converters - ADC 12-BIT SAMPLING IC

Download AD7896ARZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

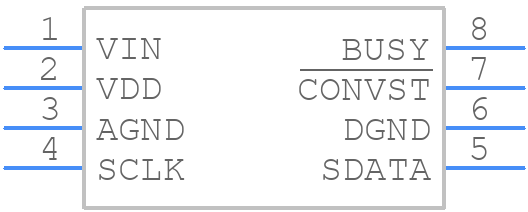

Symbol
AD7896ARZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7896ARZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8)
click to zoom
3D Models
AD7896ARZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8)
click to zoom

AD7896ARZ-REEL7 Details

  • Manufacturer Part Number:

    AD7896ARZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AD7896ARZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7896ARZ-REEL7 involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a solid ground plane and a separate analog power plane can help to reduce noise and improve performance.
  • To ensure proper calibration and configuration, follow the calibration procedure outlined in the datasheet, and use the AD7896's internal calibration modes to adjust the offset and gain. Additionally, consult the application notes and evaluation board documentation for specific guidance on configuring the device for your application.
  • The AD7896ARZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and follow the recommended operating conditions and power dissipation guidelines.
  • The AD7896ARZ-REEL7 can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. Consult the datasheet and application notes for specific guidance on communication protocols, pin connections, and software drivers.
  • To ensure electromagnetic compatibility, follow proper PCB layout and routing guidelines, use shielding and filtering as necessary, and consult the application notes and evaluation board documentation for specific guidance on EMI and RFI considerations.
