AD7896BRZ-REEL - Analog Devices

Description: Single Channel Single ADC SAR 100ksps 12-bit Serial 8-Pin SOIC N T/R

Download AD7896BRZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

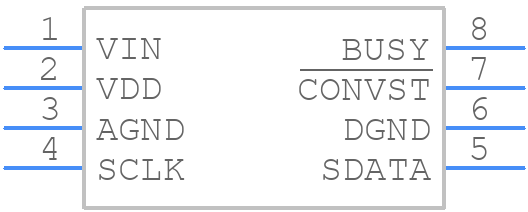

AD7896BRZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7896BRZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
AD7896BRZ-REEL - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

AD7896BRZ-REEL Details

  • Manufacturer Part Number:

    AD7896BRZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD7896BRZ-REEL Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7896BRZ-REEL involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane, and to route the analog signals on the top layer, away from the digital signals.
  • The recommended power-up and power-down sequencing for the AD7896BRZ-REEL involves powering up the analog supply (VCC) before the digital supply (VDD), and powering down the digital supply before the analog supply. This ensures that the device is properly initialized and prevents damage or incorrect operation.
  • The maximum clock frequency that can be used with the AD7896BRZ-REEL is 1.5 MHz. Using a higher clock frequency can result in increased power consumption, reduced accuracy, and potential instability. It's recommended to use a clock frequency that is within the specified range to ensure optimal performance and accuracy.
  • The AD7896BRZ-REEL requires a two-point calibration procedure to achieve the highest accuracy. The calibration involves applying a known input voltage and adjusting the offset and gain registers to achieve the desired accuracy. The calibration procedure is described in the datasheet and application notes.
  • The AD7896BRZ-REEL has a maximum junction temperature of 150°C, and it's recommended to keep the device within the specified temperature range to ensure reliable operation. Thermal considerations include providing adequate heat sinking, using a thermally conductive PCB material, and avoiding high-power dissipation components nearby.
