AD7896BRZ-REEL7 - Analog Devices

Description: Single Channel Single ADC SAR 100ksps 12-bit Serial 8-Pin SOIC N T/R

Download AD7896BRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

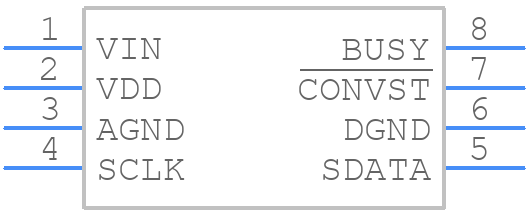

Symbol
AD7896BRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7896BRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8_1
click to zoom
3D Models
AD7896BRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-8_1
click to zoom

AD7896BRZ-REEL7 Details

  • Manufacturer Part Number:

    AD7896BRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD7896BRZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7896BRZ-REEL7 involves keeping the analog and digital grounds separate, using a star-ground configuration, and minimizing the length of the analog signal traces. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane and to route the analog signals on the top layer, away from the digital signals.
  • The self-test feature of the AD7896BRZ-REEL7 can be enabled by setting the ST pin high. This feature checks the internal circuitry and analog-to-digital conversion process. If not used, the device will still function normally, but it's recommended to use the self-test feature to ensure the device is functioning correctly, especially in critical applications.
  • The maximum clock frequency for the AD7896BRZ-REEL7 is 1.5 MHz. Exceeding this frequency can result in incorrect conversions, increased noise, and reduced accuracy. It's recommended to use a clock frequency of 1 MHz or less to ensure optimal performance.
  • The POR and BOR features of the AD7896BRZ-REEL7 ensure that the device resets to a known state during power-up and brown-out conditions. To handle these features, it's recommended to use an external reset circuit to hold the device in reset until the power supply has stabilized, and to ensure that the device is properly reset after a brown-out condition.
  • The recommended power supply decoupling and filtering for the AD7896BRZ-REEL7 involves using a combination of ceramic and electrolytic capacitors to filter out noise and ripple. A 10 μF ceramic capacitor and a 10 μF electrolytic capacitor in parallel are recommended, along with a 1 Ω resistor in series with the power supply to reduce noise.
