AD7898ARZ-10 - Analog Devices

Description: ADC,AD7898A 12bit 220kSPS 10V SPI SOIC

Download AD7898ARZ-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

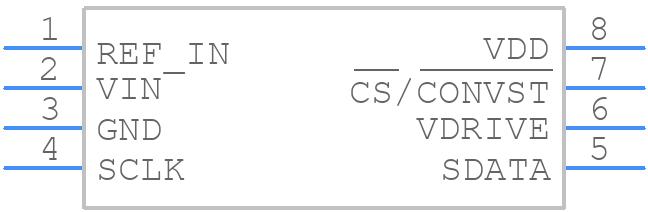

AD7898ARZ-10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7898ARZ-10 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-8)
click to zoom
3D Models
AD7898ARZ-10 - Analog Devices - 3D model - Small Outline Packages - (R-8)
click to zoom

AD7898ARZ-10 Details

  • Manufacturer Part Number:

    AD7898ARZ-10

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    3.3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.22 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD7898ARZ-10 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the analog signal traces away from the digital signal traces. Also, use a low-ESR capacitor for the VREF pin and a 0.1uF capacitor for the AVDD pin.
  • The AD7898ARZ-10 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves shorting the VIN+ and VIN- pins together and applying a voltage to the VREF pin. The device will then adjust its internal gain and offset to ensure accurate conversions.
  • The maximum sampling rate of the AD7898ARZ-10 is 100kSPS. As the sampling rate increases, the power consumption also increases. However, the device has a power-down mode that can be used to reduce power consumption when the device is not in use.
  • The AD7898ARZ-10 has internal overvoltage protection on the input pins, but it's still recommended to use external protection circuitry such as voltage-limiting resistors and diodes to prevent damage to the device.
  • The recommended operating temperature range for the AD7898ARZ-10 is -40°C to 85°C. The device's performance may degrade at extreme temperatures, and the conversion accuracy may be affected. It's recommended to use the device within the specified temperature range for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7898ARZ-10 Overview

Use the download button to access the AD7898ARZ-10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD789, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
