AD7915BRMZ-RL7 - Analog Devices

Description: 16-Bit, 1 MSPS/500 kSPS PulSAR ADCs in MSOP/LFCSP

Download AD7915BRMZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

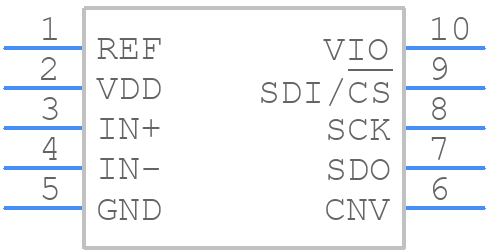

Symbol
AD7915BRMZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7915BRMZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10(MSOP)__
click to zoom
3D Models
AD7915BRMZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RM-10(MSOP)__
click to zoom

AD7915BRMZ-RL7 Details

  • Manufacturer Part Number:

    AD7915BRMZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -2.4 V

  • Conversion Time-Max:

    0.71 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7915BRMZ-RL7 Frequently Asked Questions (FAQs)

  • The AD7915BRMZ-RL7 is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed close to the ADC's power pins to filter out noise.
  • The AD7915BRMZ-RL7 has an internal calibration mechanism, but it may require additional calibration steps to achieve the highest accuracy. It is recommended to perform a system-level calibration, including the ADC, amplifiers, and sensors, to account for any offsets and gain errors. The calibration process should be done at multiple temperatures and voltage levels to ensure accuracy across the entire operating range.
  • The AD7915BRMZ-RL7 has a maximum sampling rate of 250 kSPS, but the actual achievable sampling rate depends on the system's clock frequency, conversion mode, and power consumption. Higher sampling rates increase the power consumption, so it's essential to balance the sampling rate with power consumption requirements. The datasheet provides guidelines for power consumption at different sampling rates.
  • The AD7915BRMZ-RL7 outputs 16-bit digital data, which requires proper processing and filtering to extract the desired information. It is recommended to use a digital filter, such as a low-pass filter or a median filter, to remove noise and artifacts. Additionally, the data should be processed using a microcontroller or a dedicated DSP to perform tasks such as data averaging, offset correction, and gain adjustment.
  • The AD7915BRMZ-RL7 is a high-precision ADC, and its performance can be affected by temperature. It is essential to ensure proper thermal management, including heat sinking, thermal vias, and airflow, to maintain a stable temperature. Temperature variations can affect the device's accuracy, so it's crucial to consider thermal management in the system design to ensure reliability and accuracy.
