AD7918BRUZ-REEL7 - Analog Devices

Description: Analog to Digital Converters - ADC 10-Bit 8, Ch 1 Msps ADC I.C.

Download AD7918BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

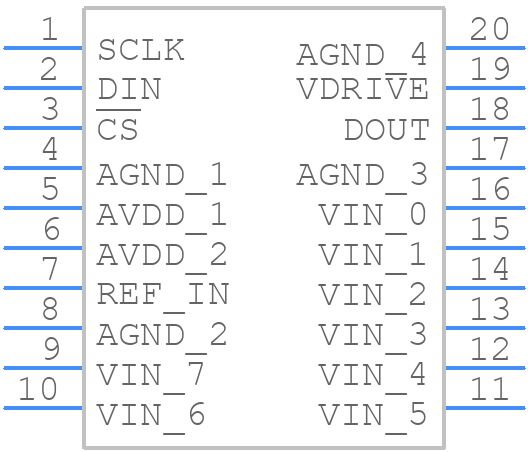

AD7918BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7918BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD7918BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD7918BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD7918BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7918BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • The AD7918BRUZ-REEL7 is a high-speed, high-precision ADC, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources.
  • To optimize the AD7918BRUZ-REEL7's performance for your specific application, you should consider factors such as the input signal frequency, amplitude, and impedance, as well as the desired conversion rate and resolution. You may need to adjust the ADC's gain, offset, and sampling rate to achieve the best possible performance.
  • The AD7918BRUZ-REEL7 is a high-performance ADC that can generate heat during operation. To ensure reliable operation over temperature, it is essential to provide adequate thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the device. The datasheet provides thermal resistance and power dissipation data to help with thermal design.
  • The AD7918BRUZ-REEL7 has a parallel or serial digital interface, and can be interfaced with a microcontroller or FPGA using a variety of protocols, such as SPI or parallel bus. Key considerations for digital interface design include ensuring proper signal integrity, using adequate buffering and termination, and managing clock domain crossing.
  • The AD7918BRUZ-REEL7 is a high-frequency device that can be susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). To ensure electromagnetic compatibility, it is essential to follow proper PCB design and layout practices, use shielding and filtering, and ensure that the device is properly grounded and decoupled.
