AD7928WBRUZ-REEL - Analog Devices

Description: 12 Bit ADC

Download AD7928WBRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

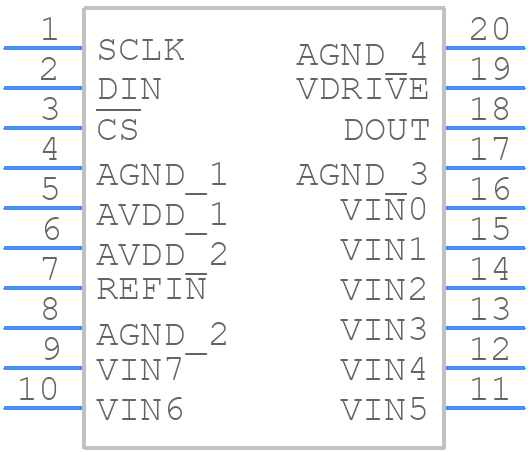

AD7928WBRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7928WBRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD7928WBRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD7928WBRUZ-REEL Details

  • Manufacturer Part Number:

    AD7928WBRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7928WBRUZ-REEL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the ADC input pins away from the digital signals and use a ferrite bead or a filter to reduce noise.
  • The AD7928WBRUZ-REEL has an internal calibration circuitry, but it's recommended to perform an external calibration to ensure accuracy. The calibration procedure involves applying a known input voltage and adjusting the offset and gain registers to achieve the desired accuracy.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures that the internal biasing and reference circuits are properly initialized.
  • The AD7928WBRUZ-REEL outputs 12-bit digital data, which can be processed using a microcontroller or a digital signal processor. It's recommended to use a digital filter, such as a moving average or a low-pass filter, to reduce noise and improve the signal-to-noise ratio.
  • The AD7928WBRUZ-REEL has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to provide adequate heat sinking, use a thermal interface material, and ensure good airflow around the device. Also, consider using a thermally enhanced package or a heat spreader.
