AD7949SCPZ-EP-RL7 - Analog Devices

Description: 14-Bit, 8-Channel, 250 kSPS PulSAR ADC

Download AD7949SCPZ-EP-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

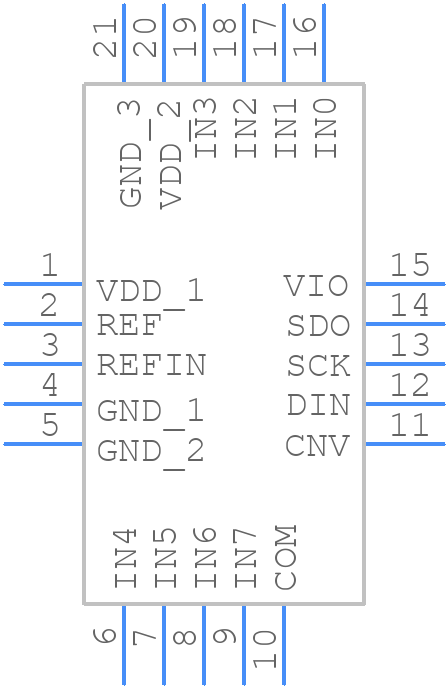

Symbol
AD7949SCPZ-EP-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7949SCPZ-EP-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead Lead Frame Chip Scale Package (LFCSP) 4 mm × 4 mm Body and 0.75 mm Package Height (CP-20-10)*
click to zoom
3D Models
AD7949SCPZ-EP-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - 20-Lead Lead Frame Chip Scale Package (LFCSP) 4 mm × 4 mm Body and 0.75 mm Package Height (CP-20-10)*
click to zoom

AD7949SCPZ-EP-RL7 Details

  • Manufacturer Part Number:

    AD7949SCPZ-EP-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-64

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.025 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e4

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.0189%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    40 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD7949SCPZ-EP-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input signals away from the digital signals and use shielding if possible. Refer to the ADI application note AN-756 for more details.
  • The AD7949SCPZ-EP-RL7 has an internal calibration circuit that calibrates the device during power-up. However, if external calibration is required, it can be done by applying a known voltage to the input and adjusting the offset and gain registers accordingly. Refer to the datasheet and application notes for more details.
  • The AD7949SCPZ-EP-RL7 has a maximum junction temperature of 150°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C.
  • The AD7949SCPZ-EP-RL7 has a SPI-compatible interface. Interface it with a microcontroller or FPGA using a SPI bus, and use a clock frequency of up to 20 MHz. Ensure proper synchronization and data transfer protocols are followed.
  • Use proper shielding, grounding, and filtering techniques to minimize EMI and RFI. Ensure the device is placed in a shielded enclosure, and use EMI filters on the input and output lines. Follow the guidelines in the datasheet and application notes to ensure compliance with electromagnetic compatibility standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7949SCPZ-EP-RL7 Overview

Use the download button to access the AD7949SCPZ-EP-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD794, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
