AD7980SRMZ-EP-RL7 - Analog Devices

Description: 16-Bit, 1 MSPS, PulSAR ADC in MSOP/LFCSP

Download AD7980SRMZ-EP-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

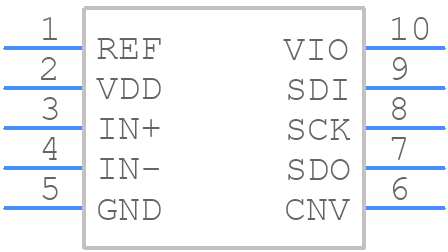

Symbol
AD7980SRMZ-EP-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7980SRMZ-EP-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)-
click to zoom
3D Models
AD7980SRMZ-EP-RL7 - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)-
click to zoom

AD7980SRMZ-EP-RL7 Details

  • Manufacturer Part Number:

    AD7980SRMZ-EP-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:22.182

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.72 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD7980SRMZ-EP-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input signals away from the digital signals and use shielding if possible. Refer to the AD7980SRMZ-EP-RL7 evaluation board layout as a reference.
  • The AD7980SRMZ-EP-RL7 has an internal calibration circuit that calibrates the device during power-up. No external calibration is required. However, if you need to perform a system-level calibration, you can use the device's internal calibration circuit as a reference and adjust your system's gain and offset accordingly.
  • The maximum sampling rate of the AD7980SRMZ-EP-RL7 is 1 MSPS. However, the actual sampling rate may be limited by the system's clock frequency, the input signal's bandwidth, and the device's settling time. Ensure that the system's clock frequency is at least 2.5 times the sampling rate, and the input signal's bandwidth is within the device's bandwidth.
  • The AD7980SRMZ-EP-RL7 has a power-on reset circuit that ensures the device is in a known state after power-up. The power-up sequencing requirements are critical to ensure proper operation. Ensure that the analog supply (VCC) is powered up before the digital supply (VDD), and the clock signal is stable before applying the input signal.
  • The AD7980SRMZ-EP-RL7 is rated for operation from -40°C to 125°C. Ensure good thermal conductivity between the device and the PCB, and use thermal vias or heat sinks if necessary. Also, ensure that the device is operated within its specified temperature range and that the system's thermal design is adequate to dissipate the device's power dissipation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7980SRMZ-EP-RL7 Overview

Use the download button to access the AD7980SRMZ-EP-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD798, or try a keyword search, such as Analog to Digital Converters
