AD7983BCPZ-RL7 - Analog Devices

Description: Analog to Digital Converters - ADC 16-BIT 1.3MSPS LOWER POWER ADC IC

Download AD7983BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

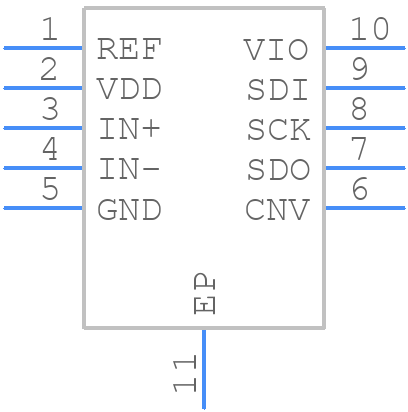

AD7983BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7983BCPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom
3D Models
AD7983BCPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom

AD7983BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7983BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1.33 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7983BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • The AD7983BCPZ-RL7 has an internal calibration circuit that performs a self-calibration sequence at power-up. However, if external calibration is required, it can be done by applying a known voltage to the input and adjusting the offset and gain registers accordingly. Refer to the datasheet for the calibration procedure.
  • The maximum sampling rate of the AD7983BCPZ-RL7 is 1 MSPS. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the input signal. The datasheet provides more information on the sampling rate and the limitations.
  • The AD7983BCPZ-RL7 outputs 16-bit data in a twos-complement format. The output data can be handled by a microcontroller or a digital signal processor, and can be processed and analyzed using software or firmware.
  • The AD7983BCPZ-RL7 has a typical power consumption of 15 mW at 1 MSPS. Power management options include a shutdown mode that reduces the power consumption to 1 μW, and a standby mode that reduces the power consumption to 50 μW.
